Renatron Repair and Maintenance Parts

Products Description

Renatron Parts

Replacement parts and preventative maintenance kits can be ordered from MEDIVATORS. If you have a question about a part, call Technical Services at 1-800-328-3324.

Renatron® II Repair Programs are also available.



17512-000

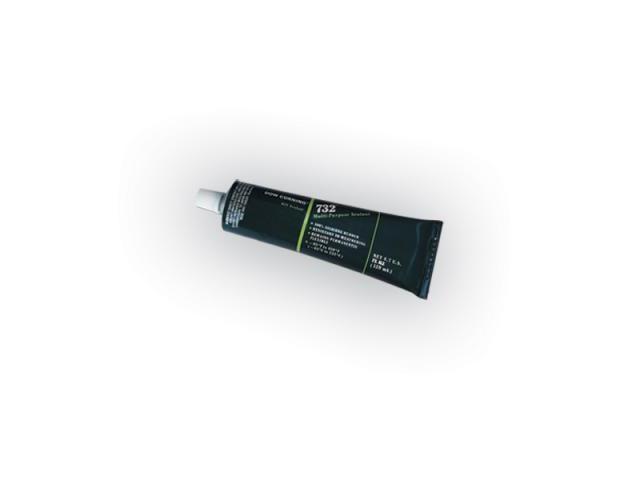

Silicone Sealant.
Used when replacing Hansen connectors.

P/N Description Package
17512-000 Silicone Sealant Each

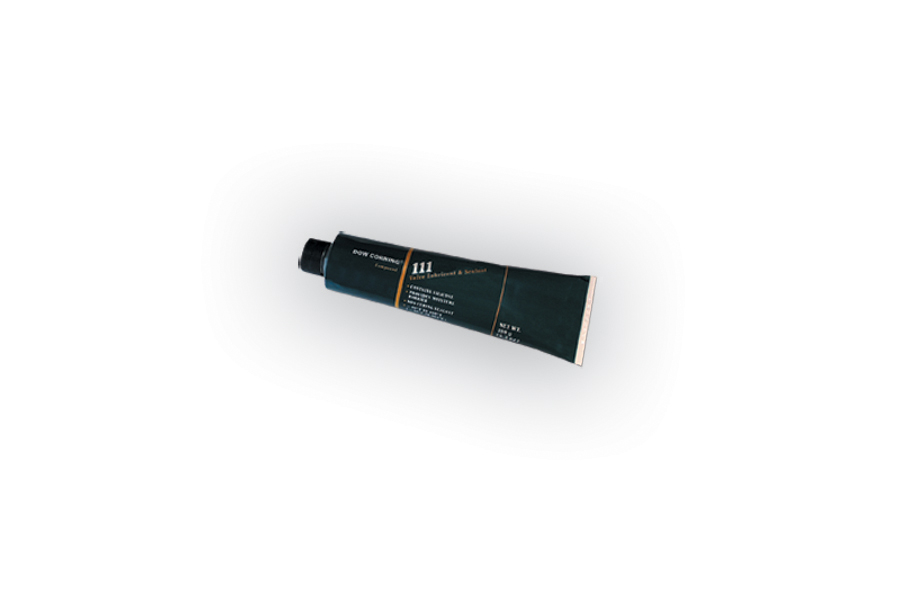

17542-000
Dow Corning III Lubricant.
Used to lubricate the Hansen connectors.

P/N Description Package
17542-000 Dow Corning III Lubricant Each







35523-002

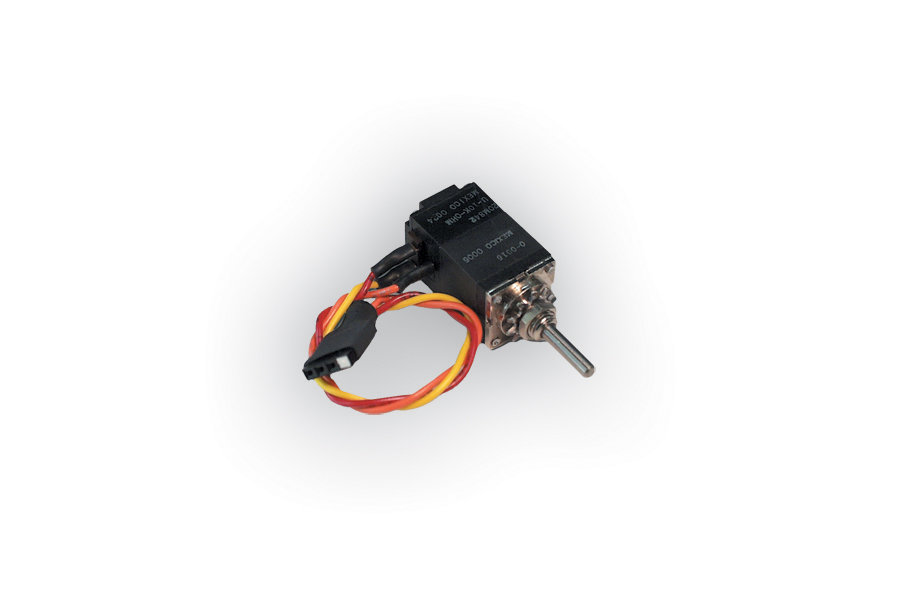

Hold-to-Set Potentiometer.
Used in conjunction with the hold-to-set button to manually set the volume for the Renatron System.

P/N Description Package
35523-002 Hold-to-Set Potentiometer Each

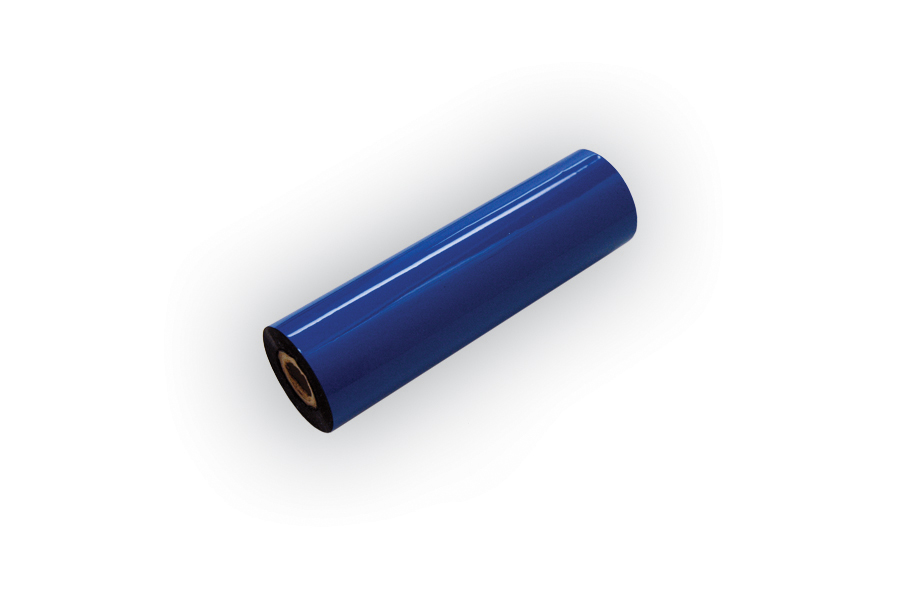

39500-036
Zebra
® Printer Ribbon for label printer. Zebra Printer Ribbon for the Zebra Label Printer

P/N Description Package
39500-036 Zebra Printer Ribbon Each

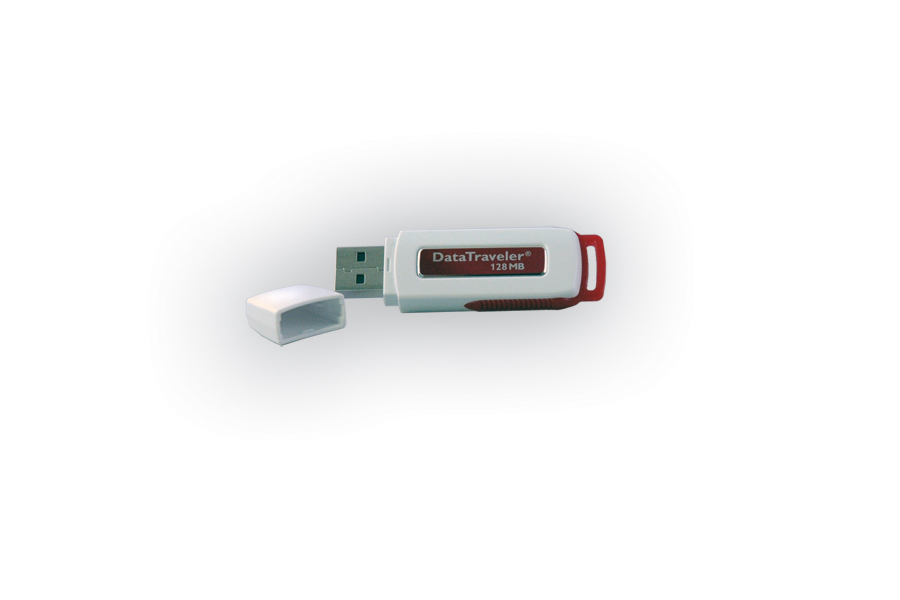

39500-042
USB Flash Drive F
or Renalog RM Backup

P/N Description Package
39500-042 USB Flash Drive Each



40088-002
Preclean and Serial Number Barcode Labels.
The barcodes are ordered as a pair. The machine serial number must be provided when ordering.

P/N Description Package
40088-002 Preclean and Serial Number Barcode Labels Each

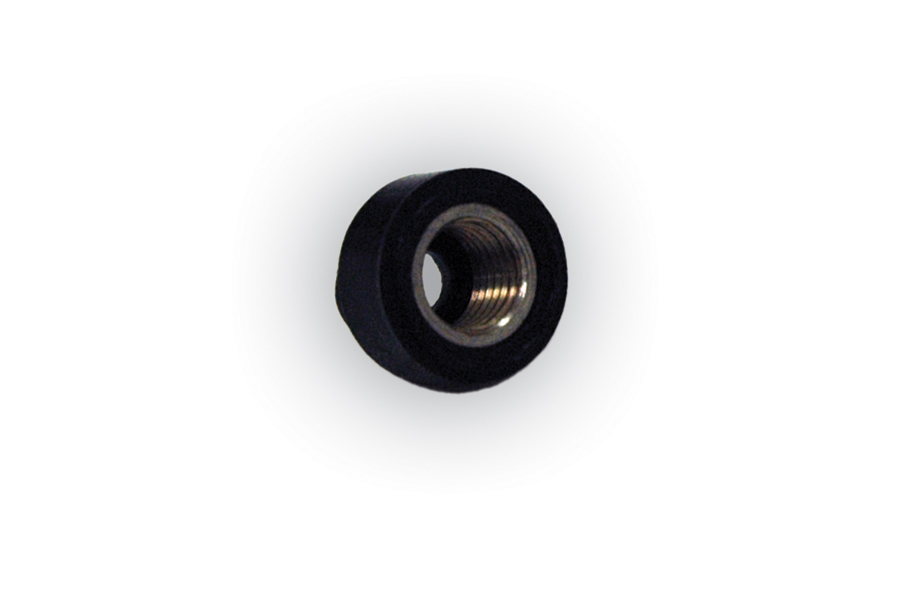

40509-000
Shaft Lock.
Secures the hold-to-set potentiometer to the front wall of the Renatron System.

P/N Description Package
40509-000 Shaft Lock Each





41005-001

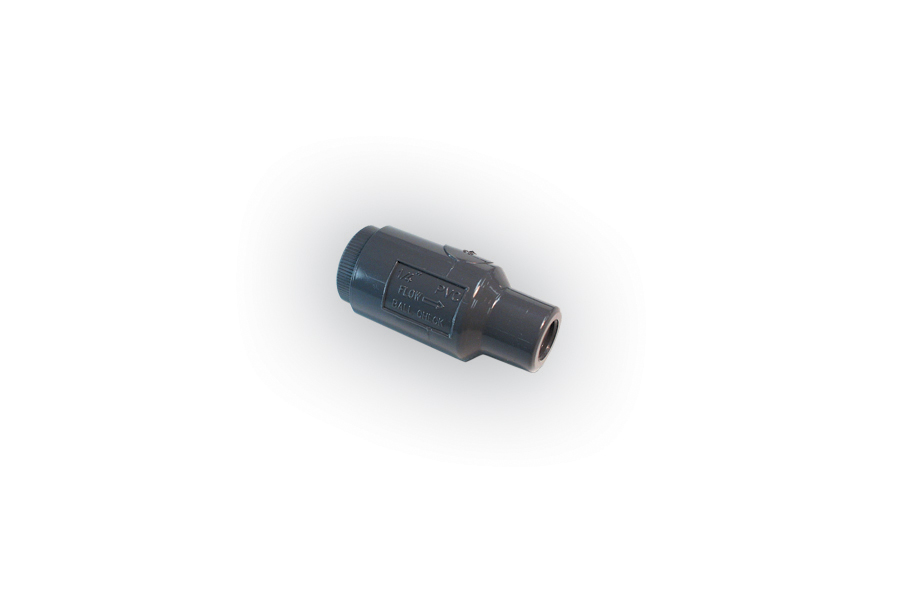

Ball Check Valve.
Replacement check valve for the Renalin uptake tube assembly. 3/8" x 1/4" NPT.

P/N Description Package
41005-001 Ball Check Valve Each





41010-000

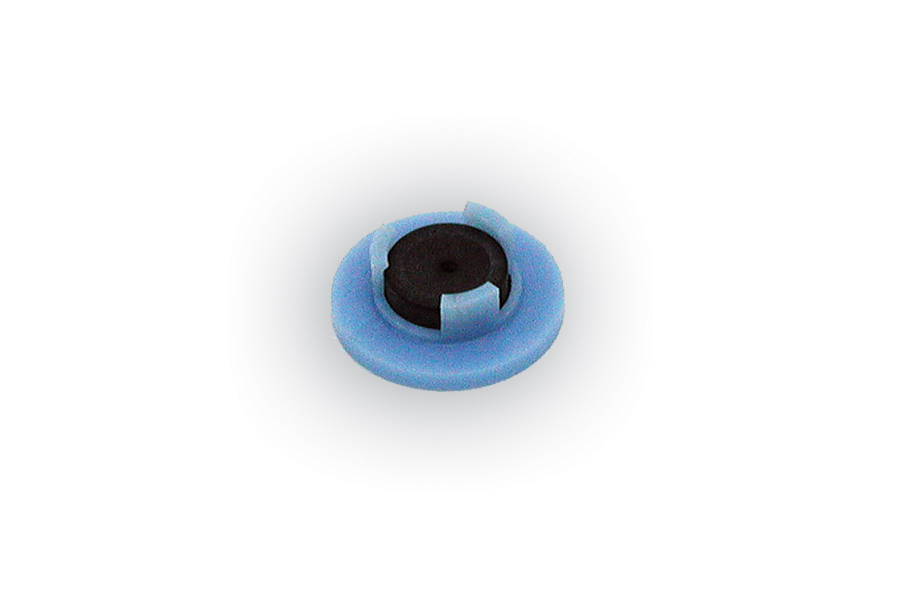

Flow Washer – 1 Liter.
Located in the manifold behind valve 2.

P/N Description Package
41010-000 1 Liter Flow Washer Each





41010-001
Flow Washer – 6 Liter.
Located in the manifold behind valve 1.

P/N Description Package
41010-001 6 Liter Flow Washer Each





41013-001

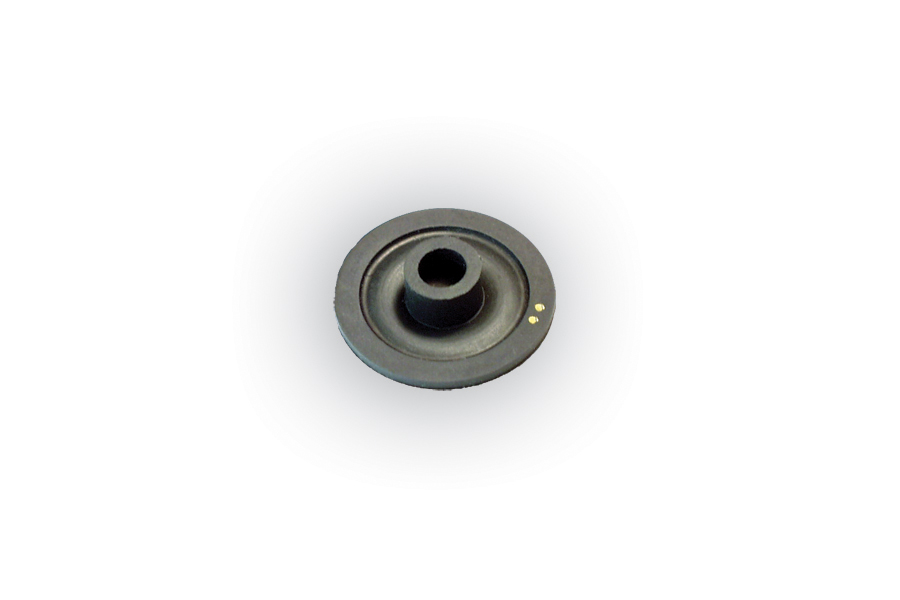

V15 Diaphragm.
Replacement diaphragm for the V-15 Renalin valve assembly

P/N Description Package
41013-001 V15 Diaphragm Each





41013-003

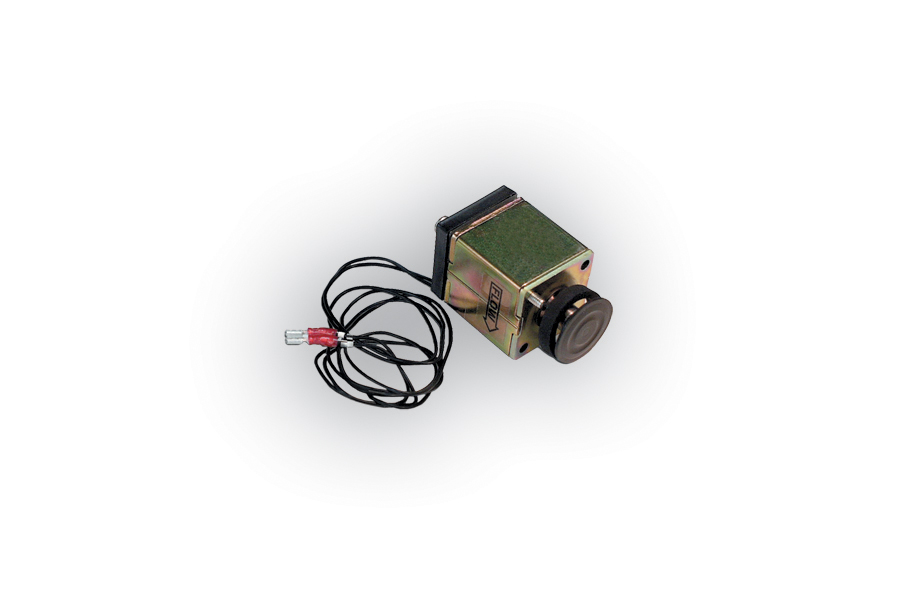

V15 Solenoid Assembly.

P/N Description Package
41013-003 Renalin Valve Each





41014-001

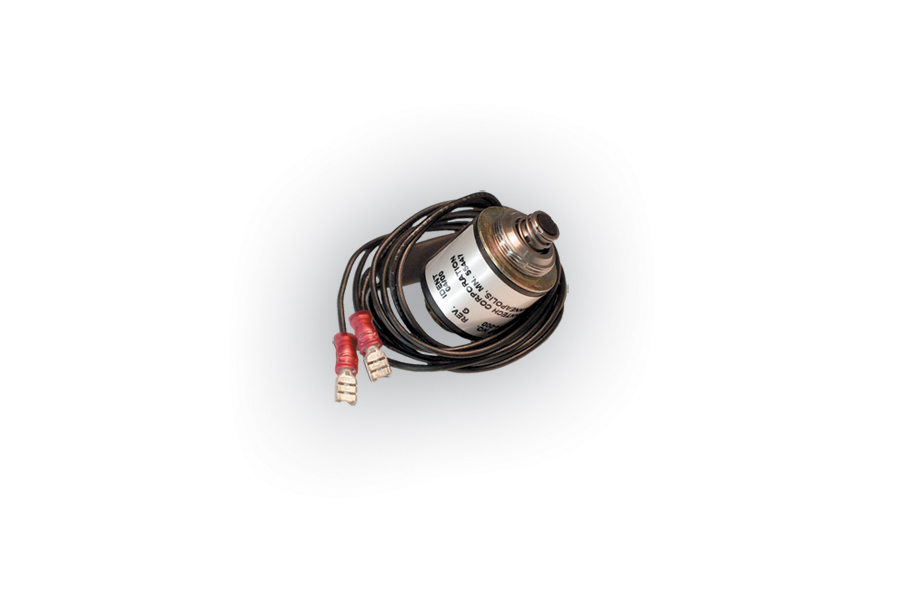

Small Valve Assembly.
The assembly includes a coil, valve guide and plunger. The small valve assembly can be used on V2, V10, V12, and V13

P/N Description Package
41014-001 Small Valve Assembly Each







41014-002

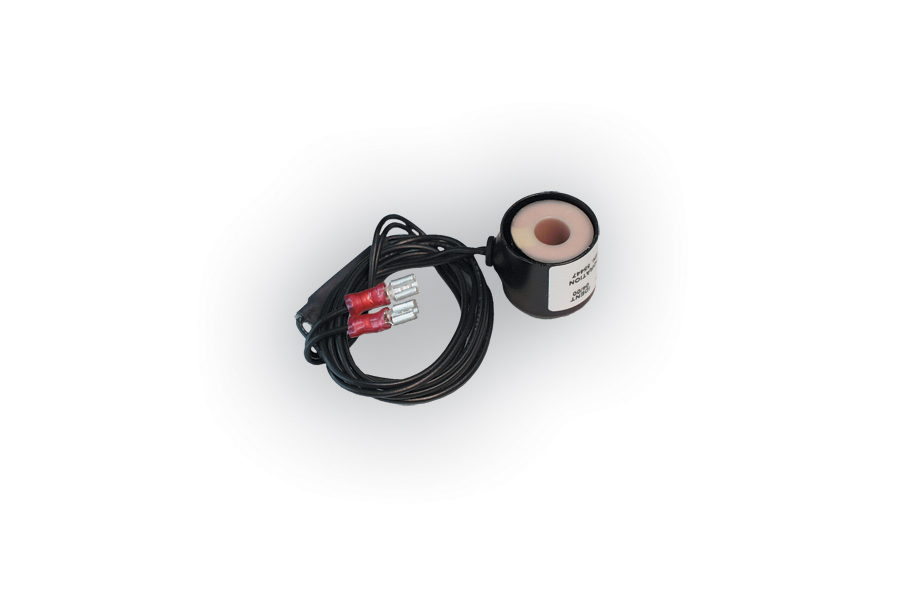

Small Coil.
Replacement solenoid for V2, V10, V12, and V13

P/N Description Package
41014-002 Small Coil Each

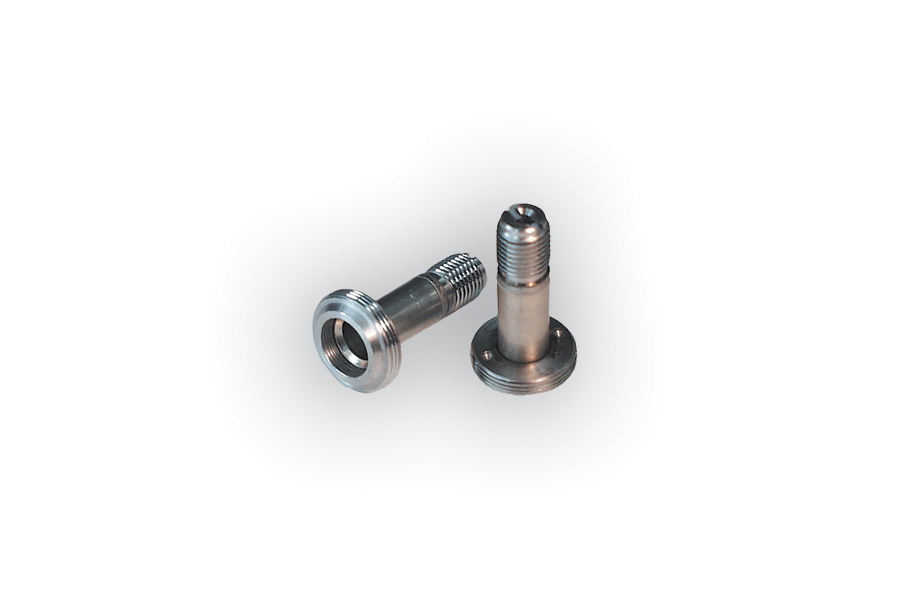

41014-003
Small Valve Guide.
Replacement valve guide for V2, V10, V12, and V13.

P/N Description Package
41014-003 Small Valve Guide Each







41014-004

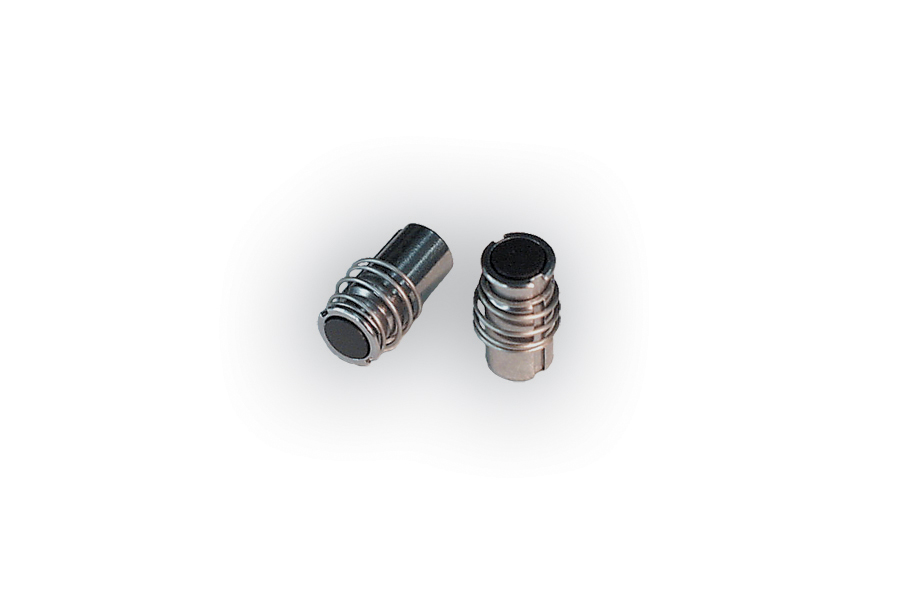

Small Plunger and Spring.
Replacement plunger and spring for V2, V10, V12, and V13.

P/N Description Package
41014-004 Small Plunger and Spring Each

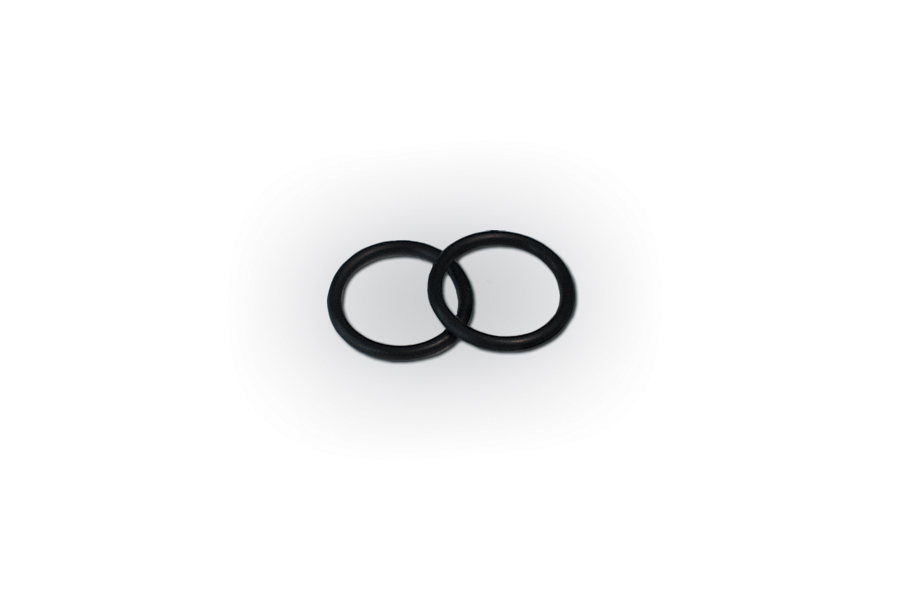

41014-015
Small O-Ring.
Replacement O-Ring for V2, V10, V12, and V13.

P/N Description Package
41014-015 Small O-Ring Each







41015-001

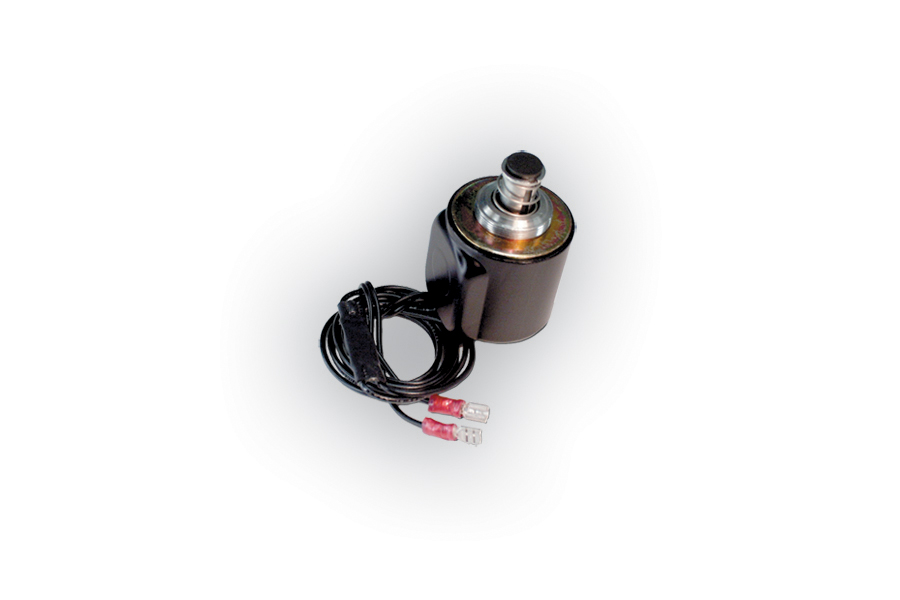

Large Valve Assembly.
The assembly includes a coil, valve guide and plunger. The Large Valve Assembly can be used on V1, V3, V4, V5, V6, V7, V8, V9 and V11.

P/N Description Package
41015-001 Large Valve Assembly Each

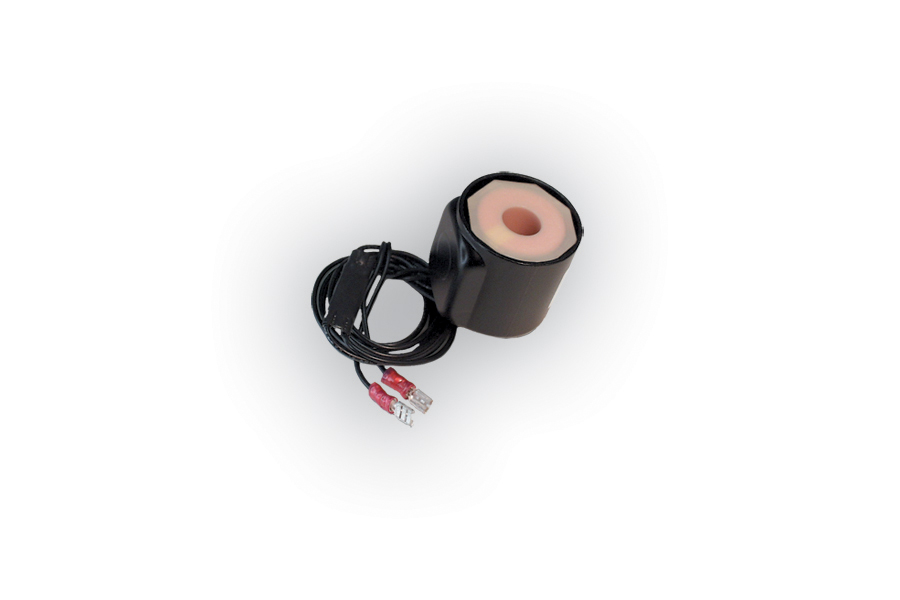

41015-002 Large Coil.
Replacement solenoid for V1, V3, V4, V5, V6, V7, V8, V9, and V11.

P/N Description Package
41015-002 Large Coil Each

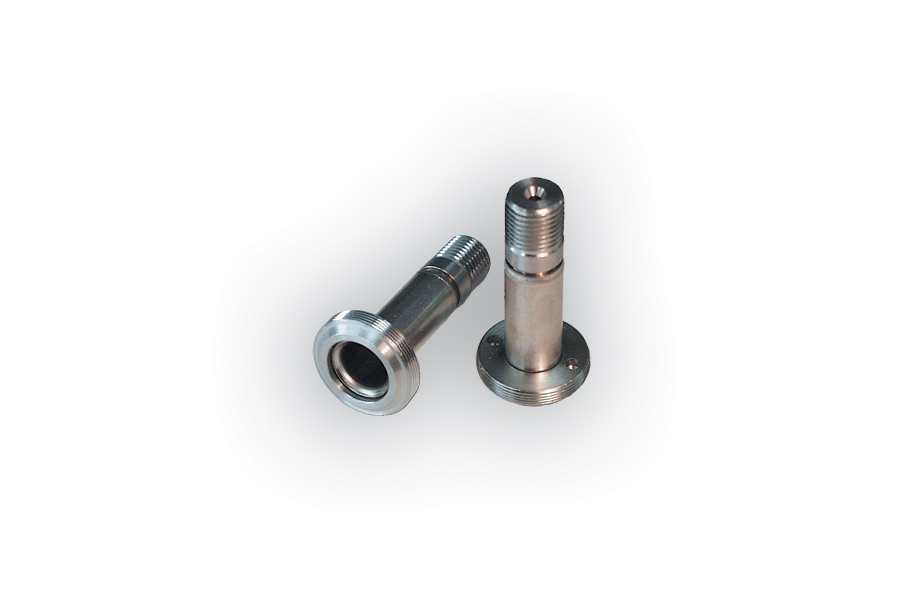

41015-003
Large Valve Guide.
Replacement valve guide for V1, V3, V4, V5, V6, V7, V8, V9, and V11.

P/N Description Package
41015-003 Large Valve Guide Each







41015-004

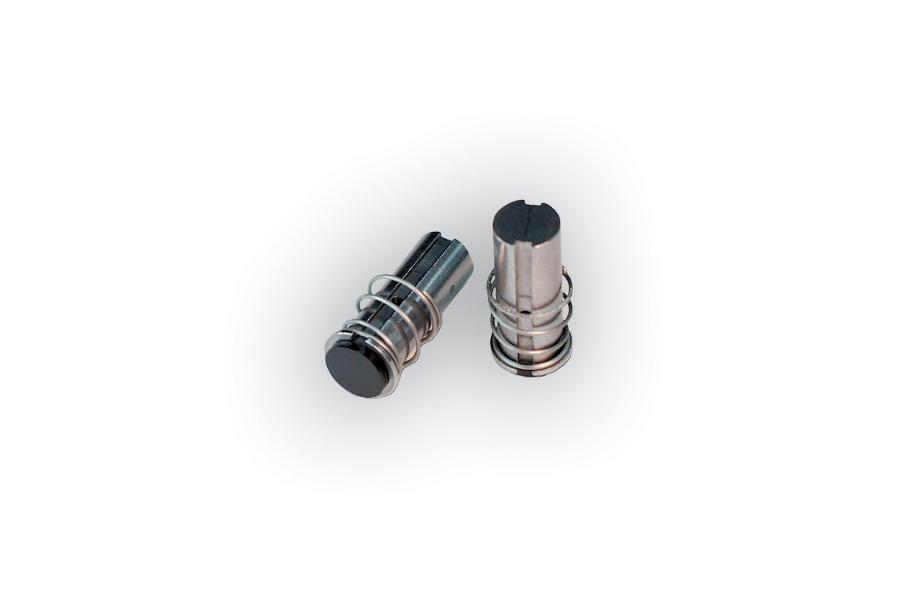

Large Plunger and Spring.
Replacement plunger and spring for V1, V3, V4, V5, V6, V7, V8, V9, and V11.

P/N Description Package
41015-004 Large Plunger and Spring Each

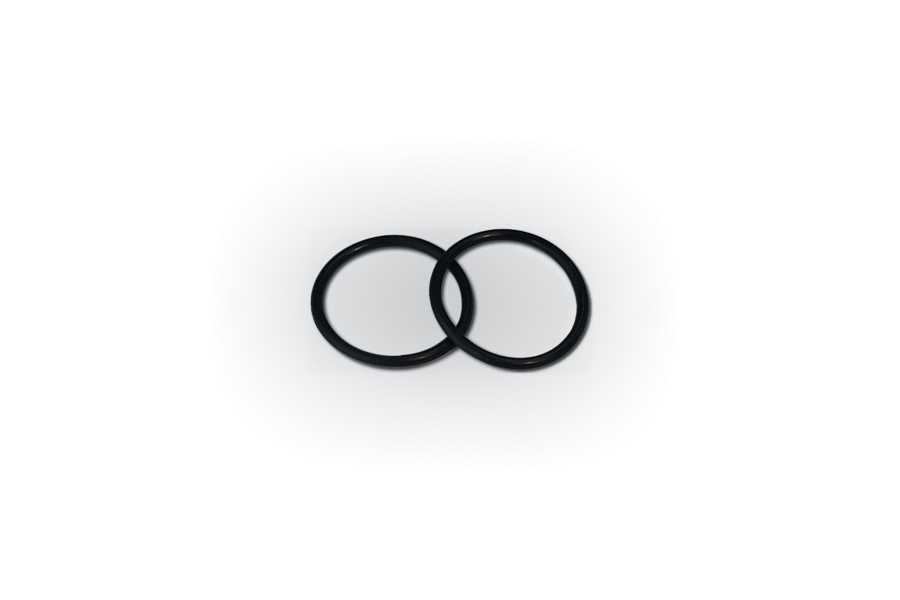

 41015-015 Large O-Ring.
Replacement O-Ring for V1, V3, V4, V5, V6, V7, V8, V9, and V11.

P/N Description Package
41015-015  Large O-Ring Each







41036-002 3/8” Check Valve.
In-line check valve located on the water inlet hose assembly.

P/N Description Package
41036-002 3/8" Check Valve  Each

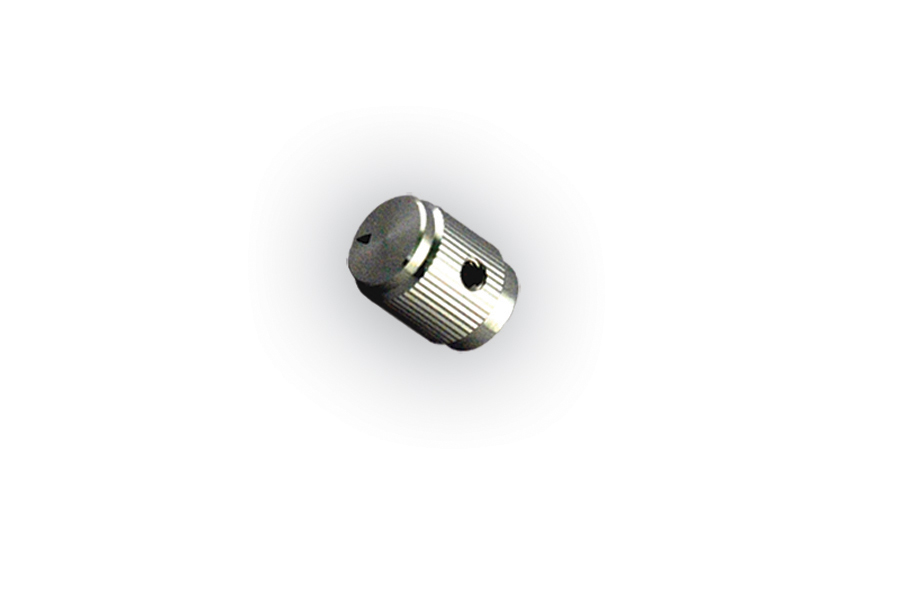

41512-000
Hold-to-Set Knob.
Silver hold to set knob.

P/N Description Package
41512-000 Hold to Set Knob  Each





41600-113

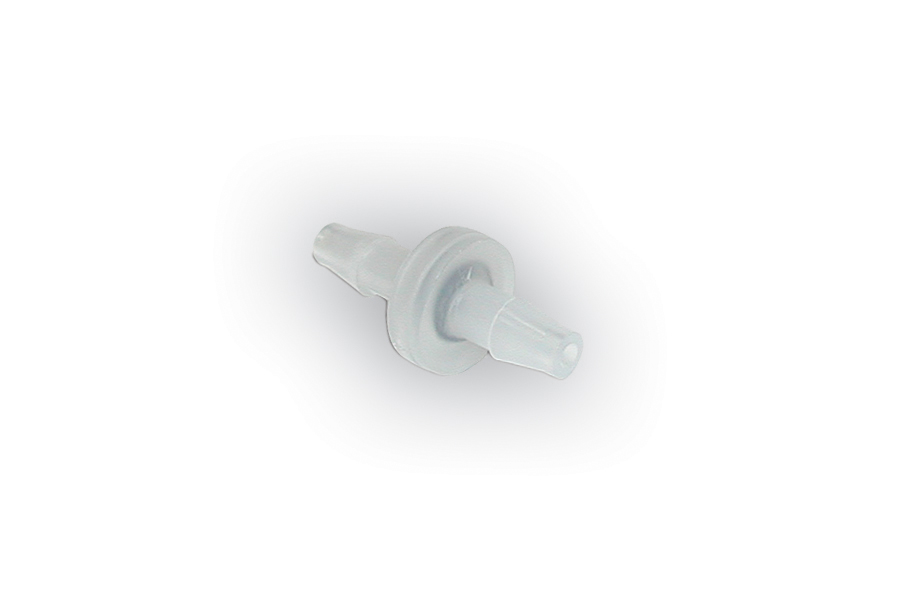

Renalin 100 Check Valve.
Replacement check valve for the Renalin 100 uptake tube assembly.

P/N Description Package
41600-113 Renalin 100 Check Valve  Each





41600-164

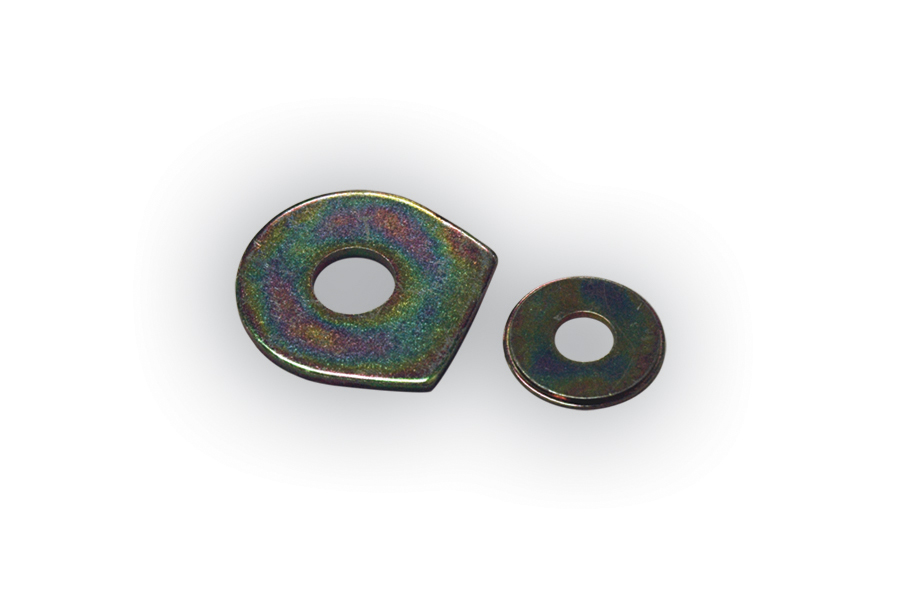

Small Valve Washer.
Replacement washer for the small valve coil assembly.

P/N Description Package
41600-164 Small Valve Washer  Each





41600-165
Large Valve Washer.
Replacement washer for the large valve coil assembly.

P/N Description Package
41600-165 Large Valve Washer  Each





43034-000

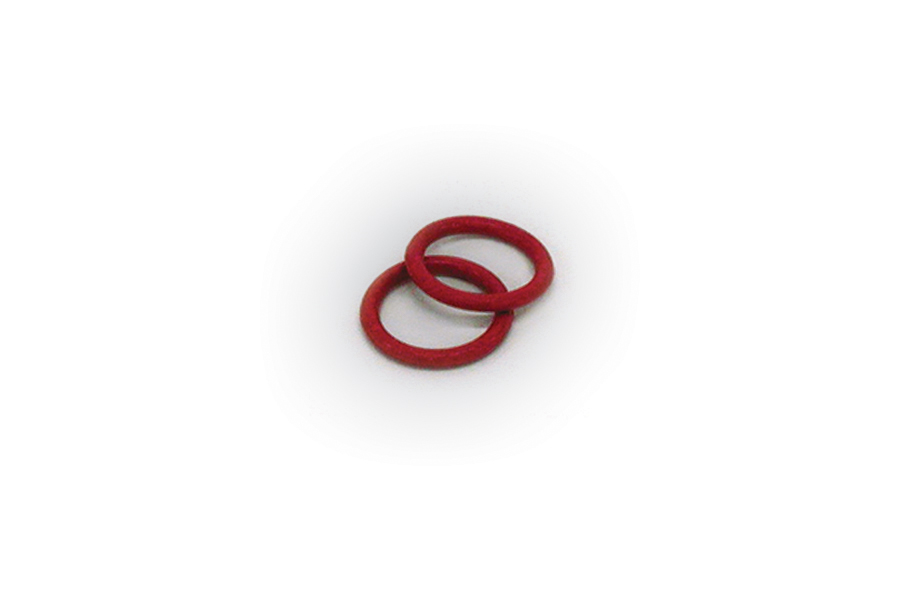

Jet Pump O-Ring.
This O-ring is located on the nozzle/spacer assembly, and the drain fitting.

P/N Description Package
43034-000 Jet Pump O-Ring  Each





43034-001

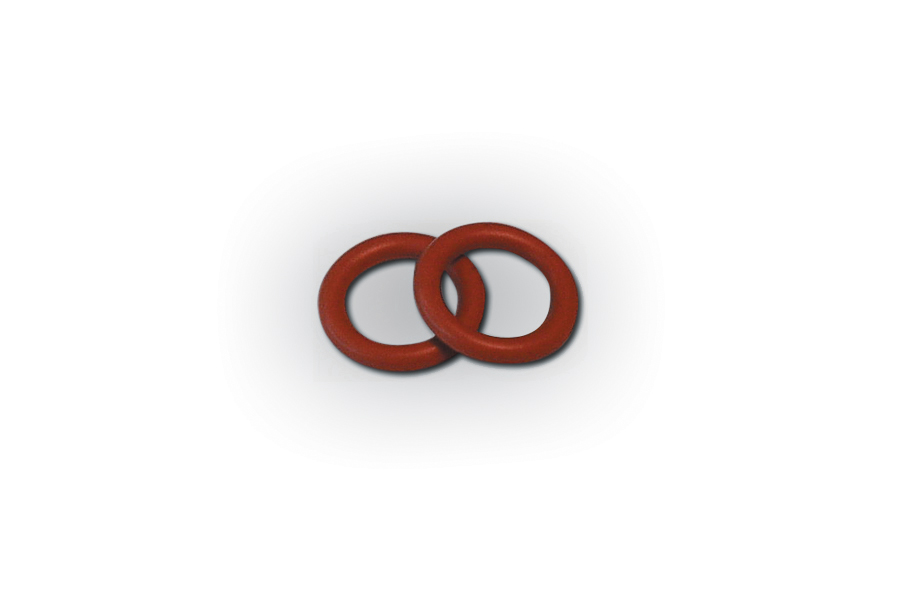

Diffuser O-Rings.
Replacement O-rings for the jet pump diffuser assembly (2 needed per diffuser).

P/N Description Package
43034-001 Diffuser O-Rings  Each

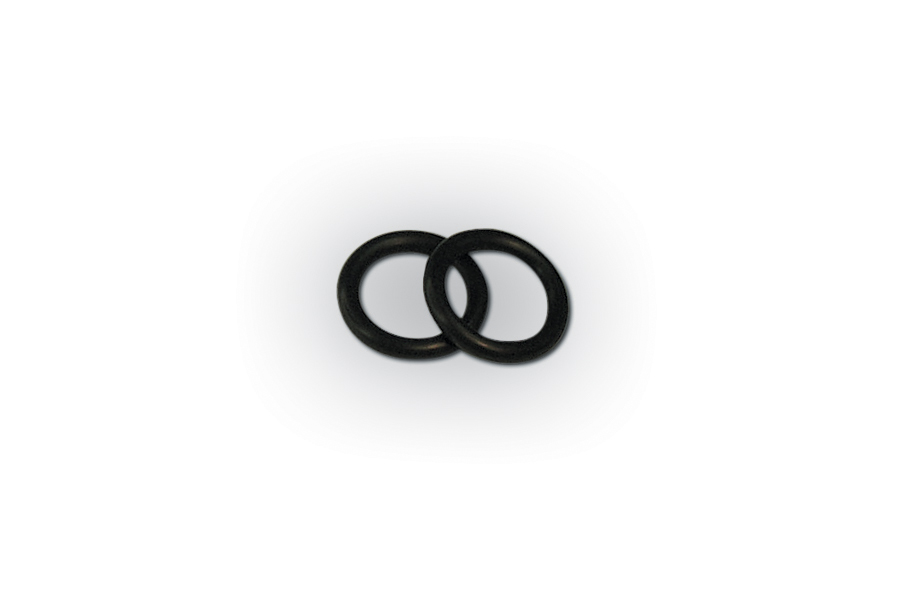

43044-000
Hansen O-ring

P/N Description Package
43044-000 Hansen O-Ring  Each

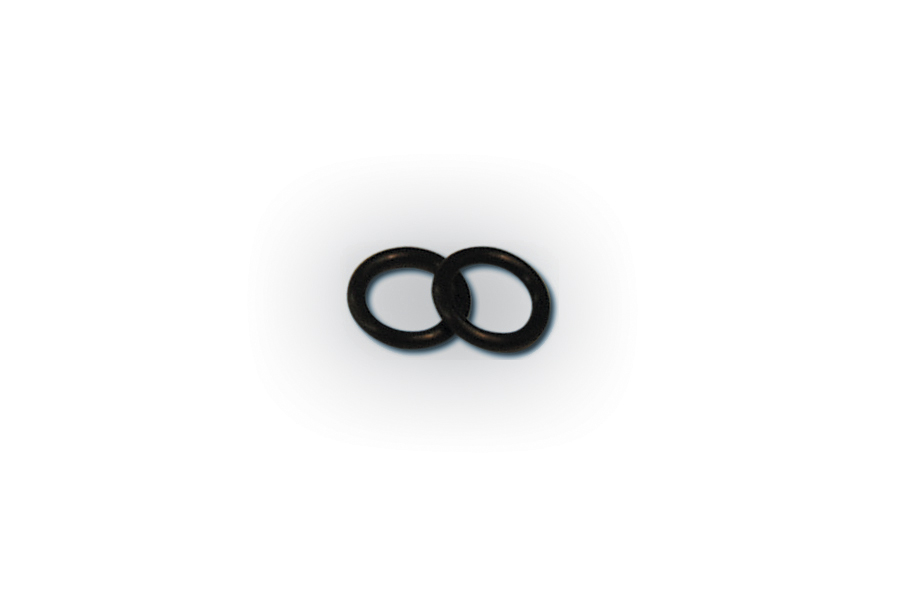

43044-003
O-Ring – Colder Connector.
Replacement O-ring for all male colder connectors, male swivel connectors, and reprocessing connectors.

P/N Description Package
43044-003 O-Ring Colder Connector Each

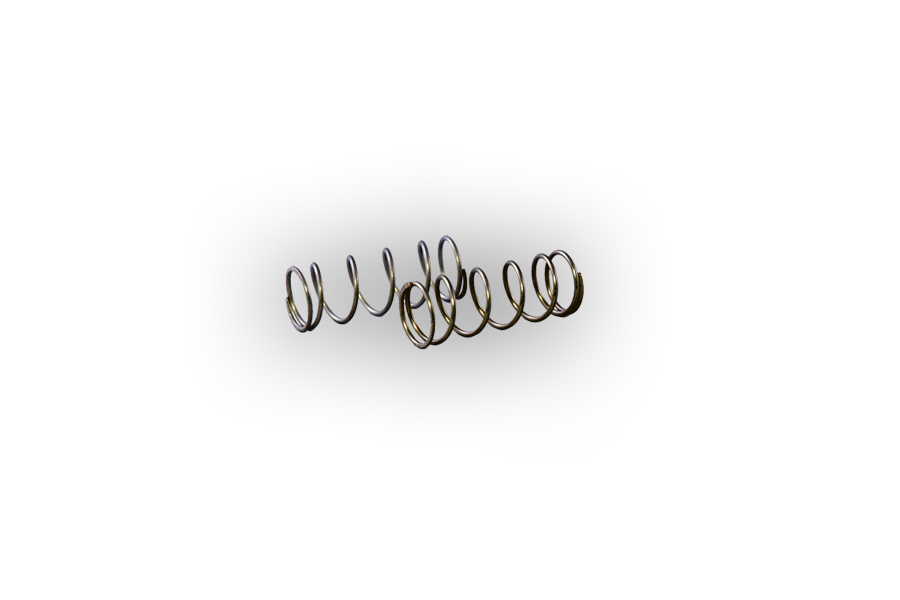

44508-000
Flow Washer Spring.
Replace the flow washer springs when you replace the flow washers. This spring is for the 1 liter or 6 liter flow washers.

P/N Description Package
44508-000 Flow Washer Spring  Each





45005-026

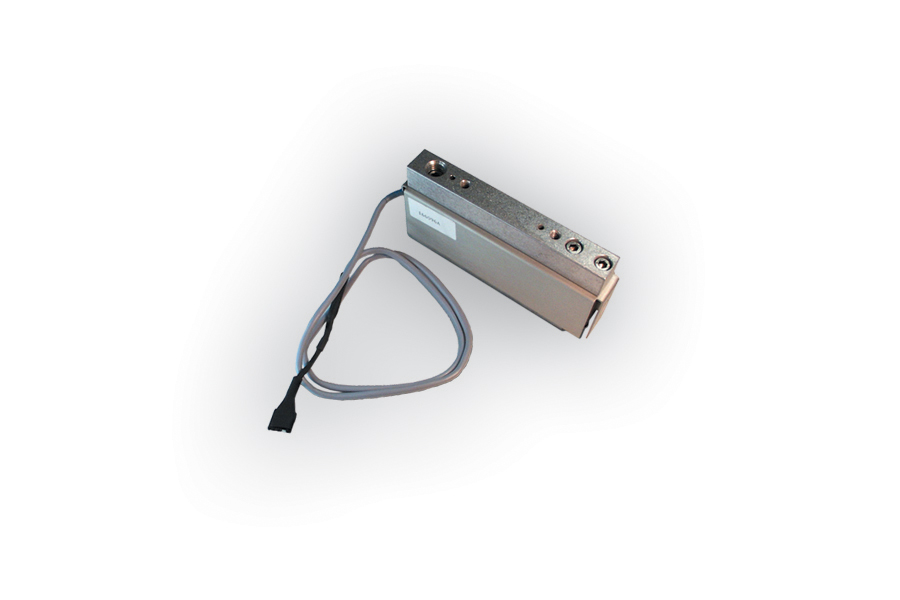

Load Cell – New Version.
Contact MEDIVATORS Technical Services at 800-328-3324 before ordering.

P/N Description Package
45005-026 Load Cell New Version  Each





45006-001

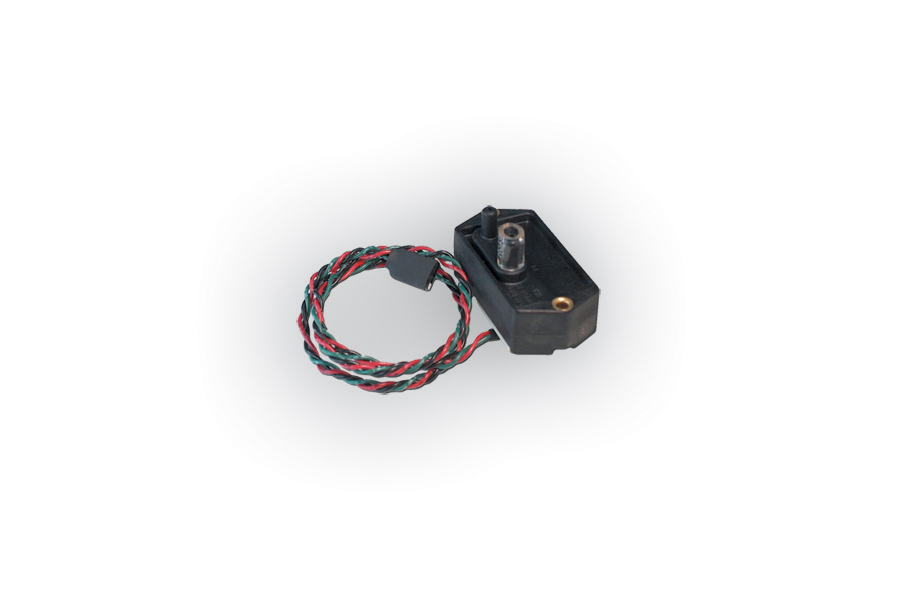

Pressure Transducer.
Pressure sensor located on the manifold assembly.

P/N Description Package
45006-001 Pressure Transducer  Each





45008-015

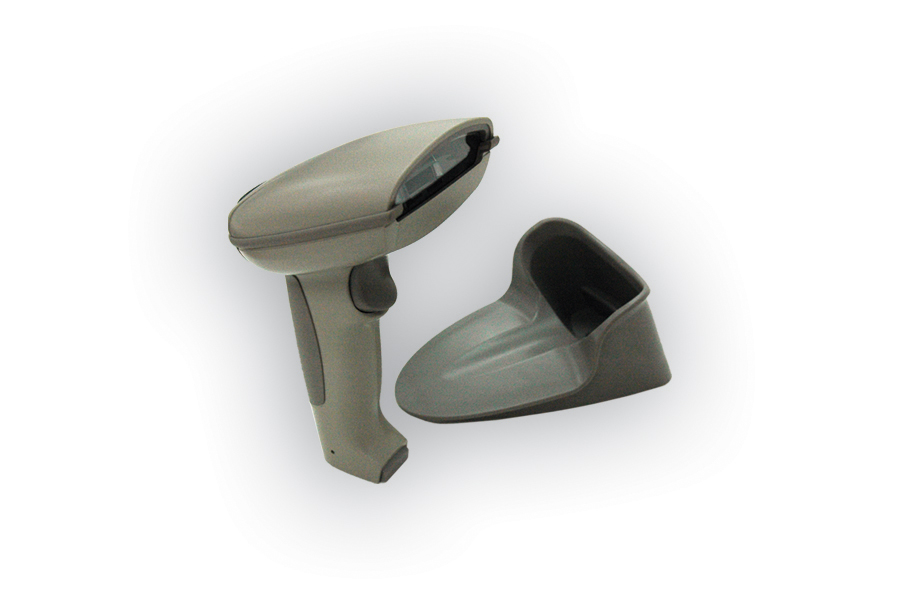

CCD Scanner.
CCD Scanner gun for reading the Renalog RM system barcodes. This is the scanner gun only (cable sold separately below).

P/N Description Package
45008-015 CCD Scanner  Each





45008-020
Cable, 8ft.

P/N Description Package
45008-020 Cable, 8ft.  Each

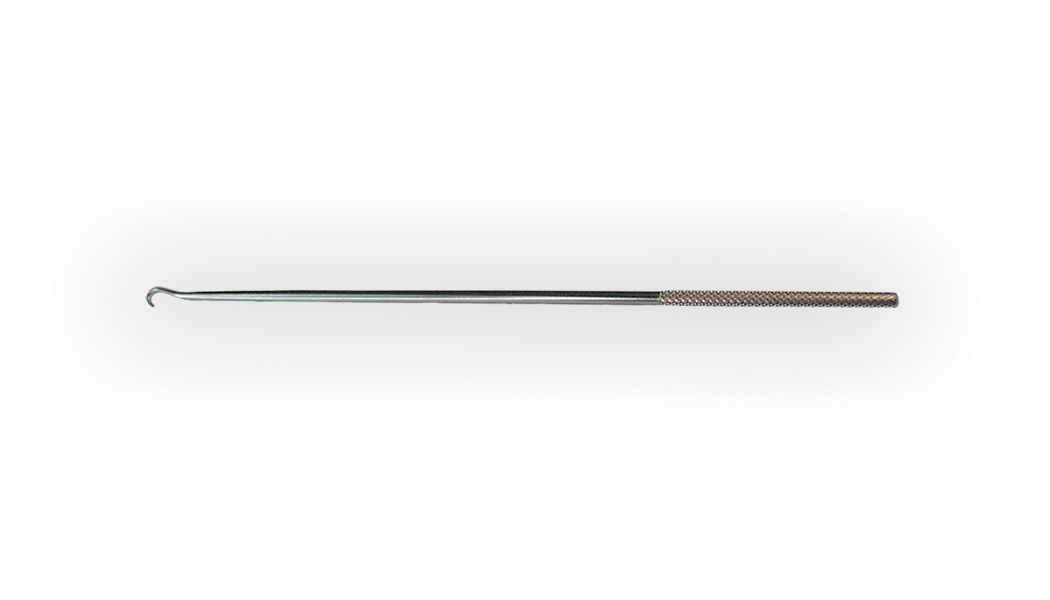

47048-001
Jet Pump Removal Tool.
Used to remove the jet pump from the Renatron System.

P/N Description Package
47048-001 Jet Pump Removal Tool  Each



47049-147

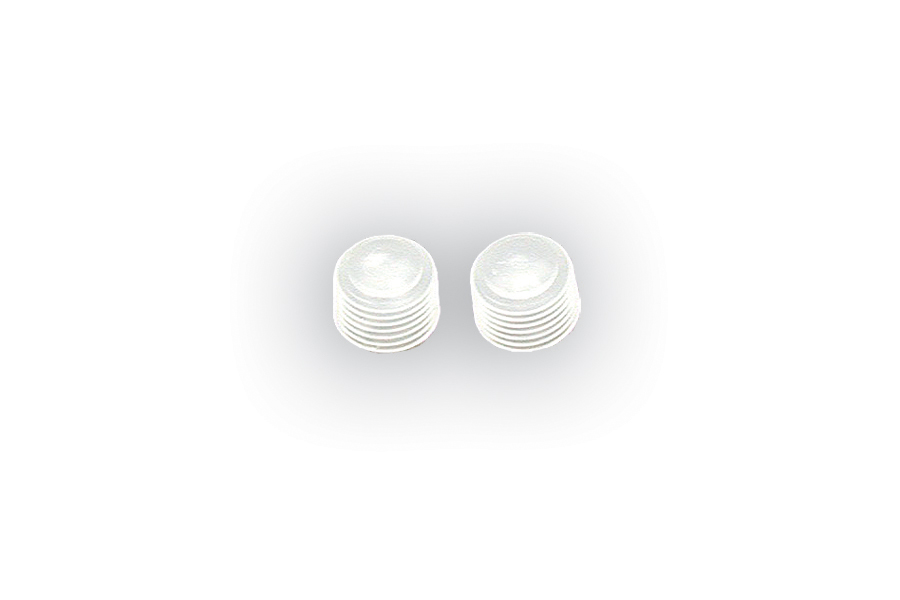

Manifold Plug.
These plugs are located on the back of the manifold.

P/N Description Package
47049-147 Manifold Plug  Each



47502-002
Colder Connector - In-line Female.
Located at the end of the Renalin hose.

P/N Description Package
47502-002 Colder Connector - In-line Female  Each

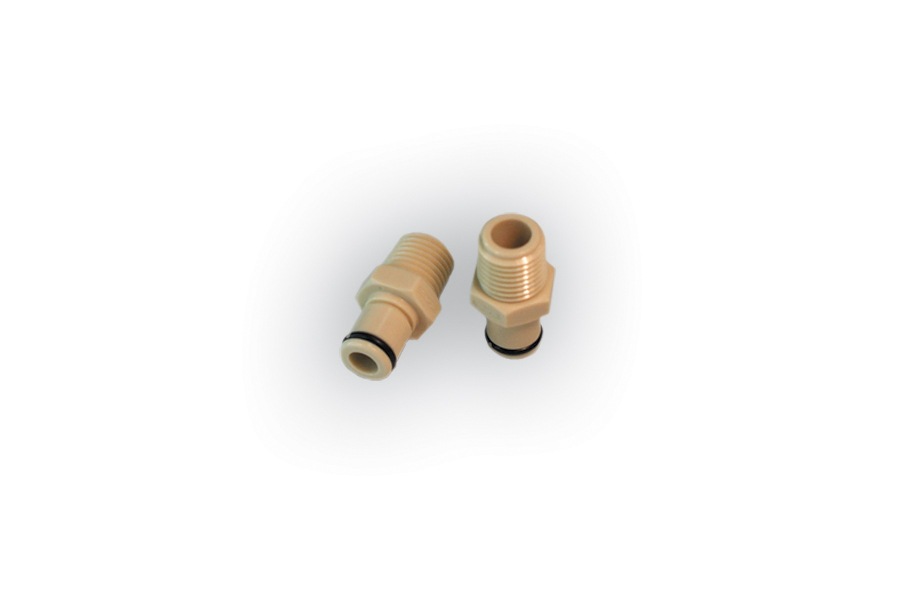

47502-003
Colder Connector – Male Threaded.
Located at the top of the uptake tube assembly.

P/N Description Package
47502-003 Colder Connector - Male Threaded  Each

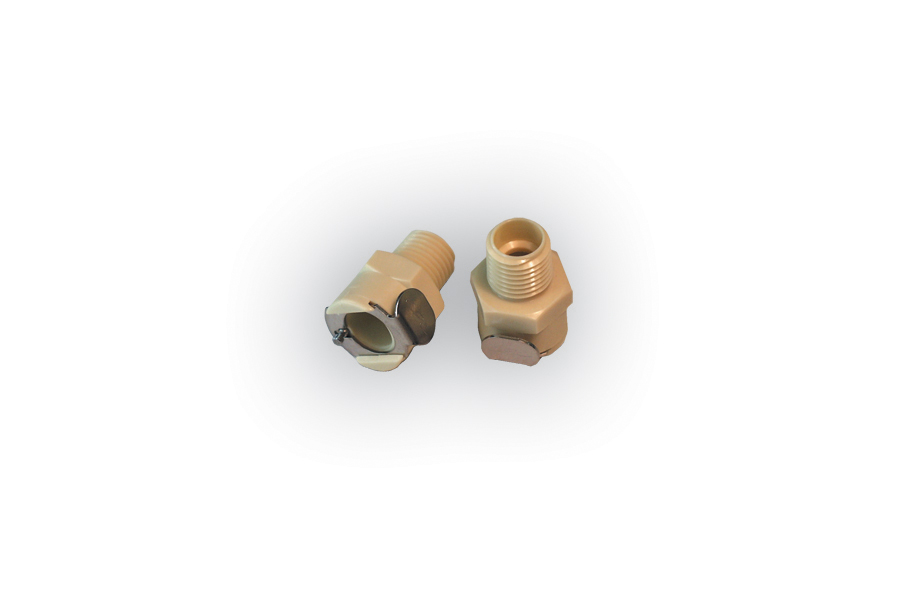

47502-004
Colder Connector – Female Threaded.
Located on the front of the manifold.

P/N Description Package
47502-004 Colder Connector - Female Threaded  Each







47502-005

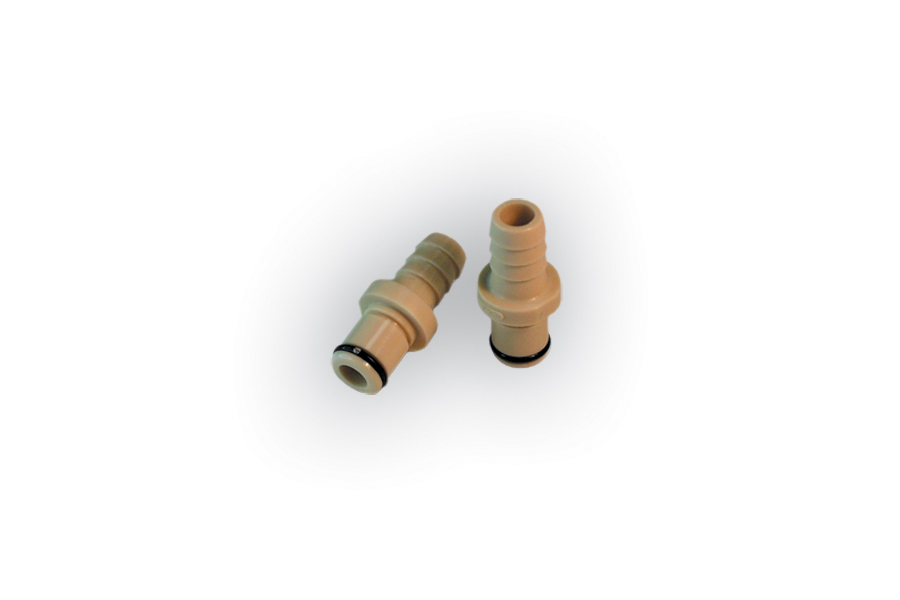

Colder Connector – Male Barbed.
Located on the end of the arterial bloodline and dialysate line; connects to the female threated connector on the front of the manifold.

P/N Description Package
47502-005 Colder Connector - Male Barbed  Each



47502-006
Colder Connector – Elbow Barbed.
Connects to the female threaded connector on the front of the manifold.

P/N Description Package
47502-006 Colder Connector - Elbow Barbed  Each



47502-022
Swivel Body.
Quick connnect fitting located on the end of the blood lines.

P/N Description Package
47502-022 Swivel Body  Each



47509-248

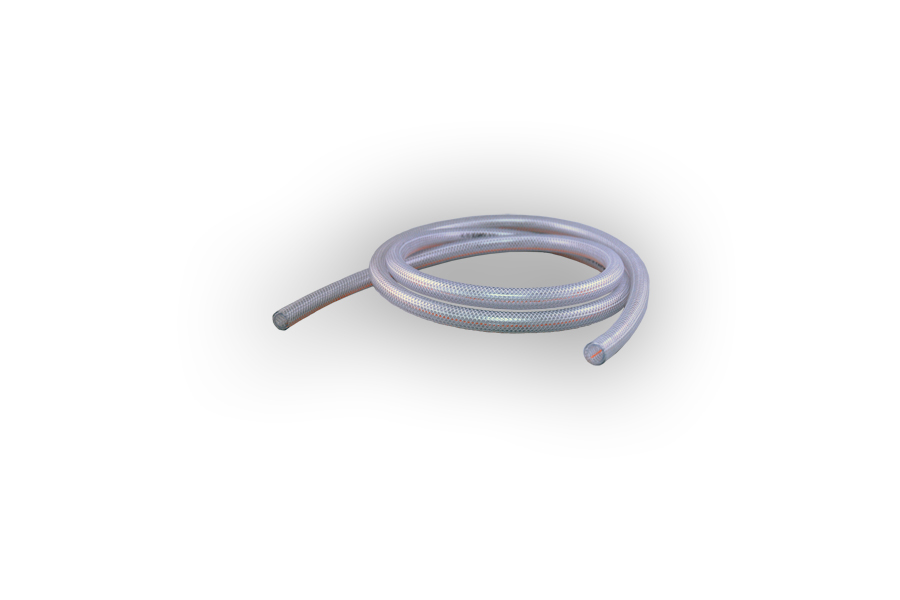

Renatron Drain Hose.
Drain line for the Renatron (6 feet).

P/N Description Package
47509-248 Renatron Drain Hose  Each

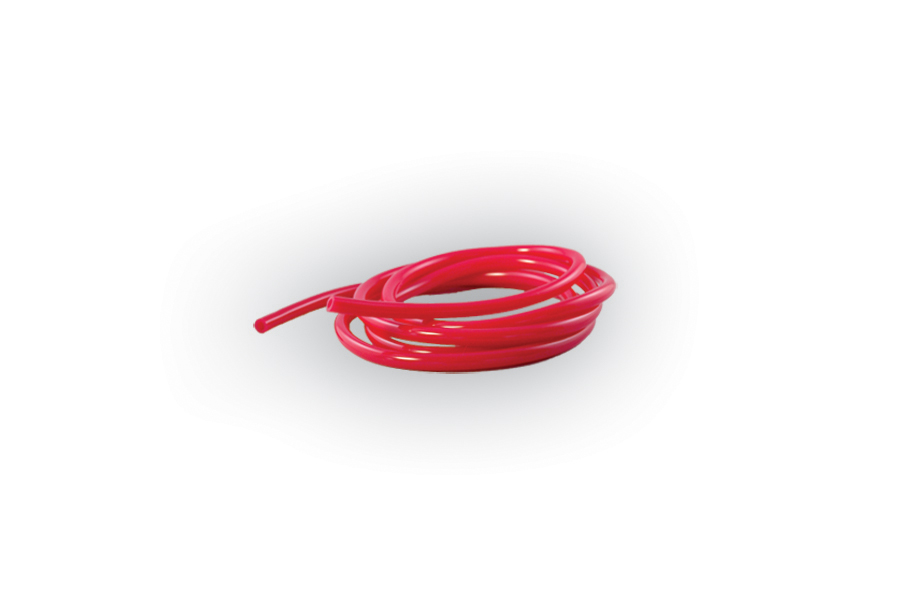

47509-249
Red Renalin Hose.
Red Renalin tubing (6 feet) for the Renatron.

P/N Description Package
47509-249 Red Renalin Hose  Each



47509-357

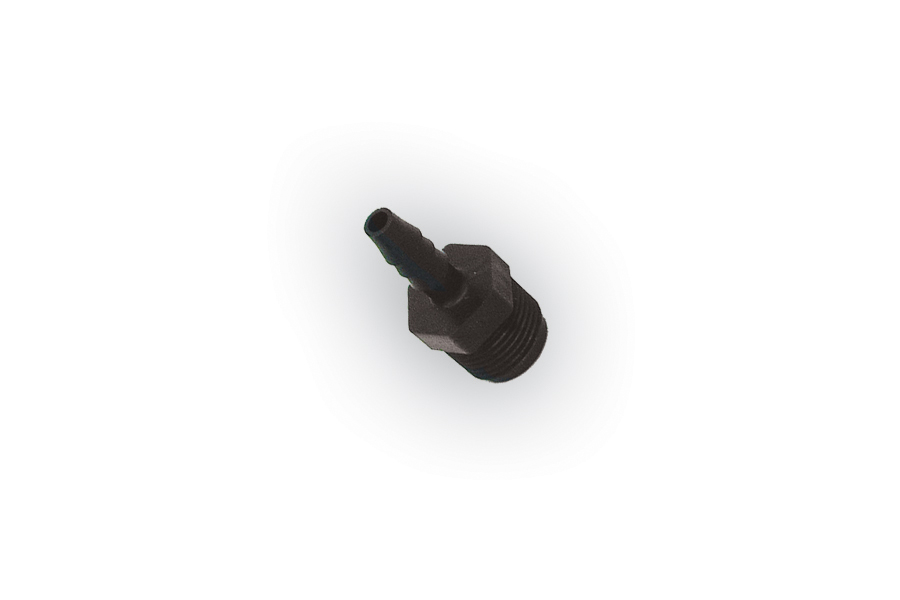

Adapter 3/8” NPT x ¼” Barb.
Barb fitting located on the uptake tube assembly

P/N Description Package
47509-357 Adapter 3/8" NPT x 1/4" Barb  Each



47606-001

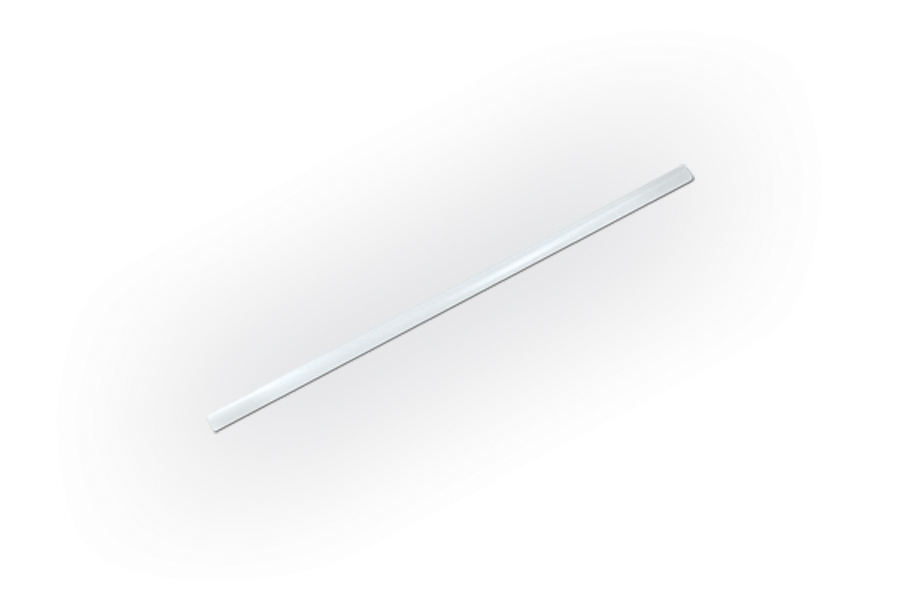

Suction Tube. Replaces tube for the Renalin uptake tube assembly.

P/N Description Package
47606-001  Suction Tube Each



47606-005

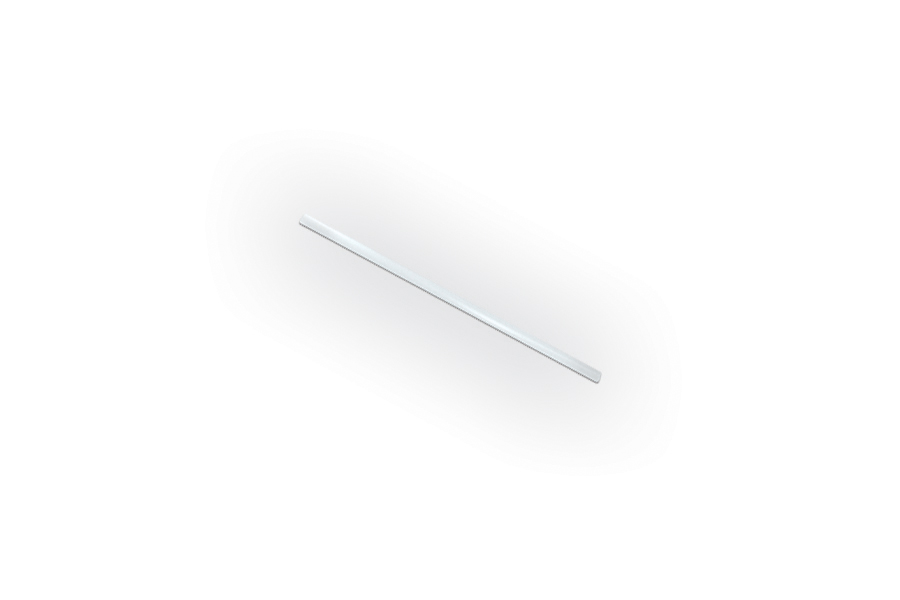

Renalin 100 Suction Tube. Replaces tube for the Renalin 100 uptake tube assembly.

P/N Description Package
47606-005 Renalin 100 Suction Tube  Each



47702-000

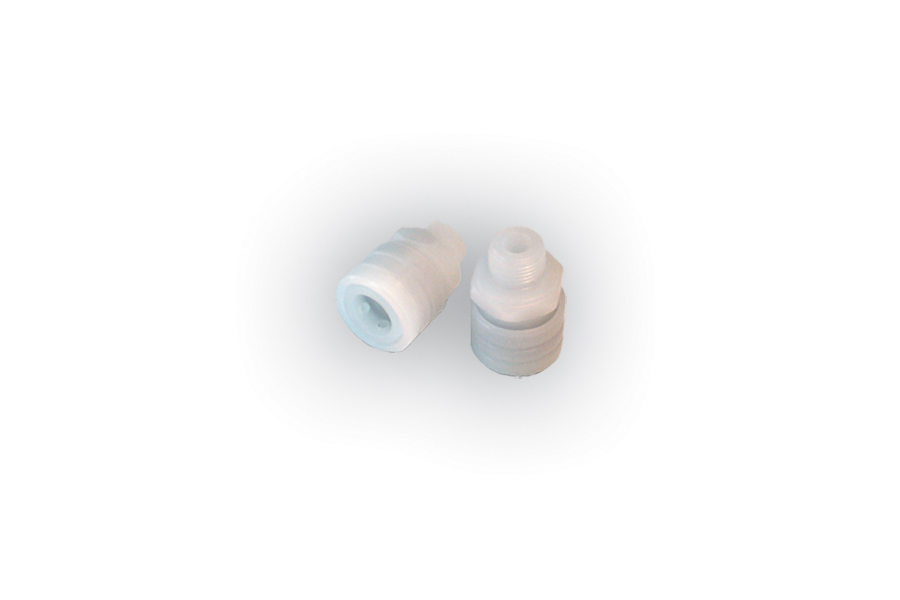

Hansen – Female Socket.
This Hansen connector threads into the end of the dialyzer holder.

P/N Description Package
47702-000 Hansen - Female Socket  Each

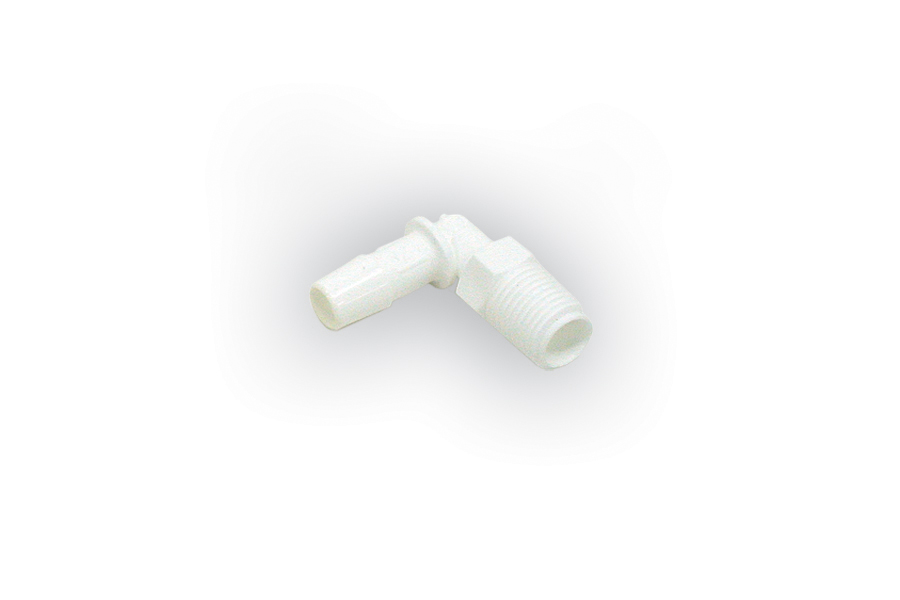

47802-002
Plastic Elbow ¼” NPT x 3/8” Barb.
The elbow is located on the front of the manifold.

P/N Description Package
47802-002 Plastic Elbow 1/4" x 3/8" Barb  Each

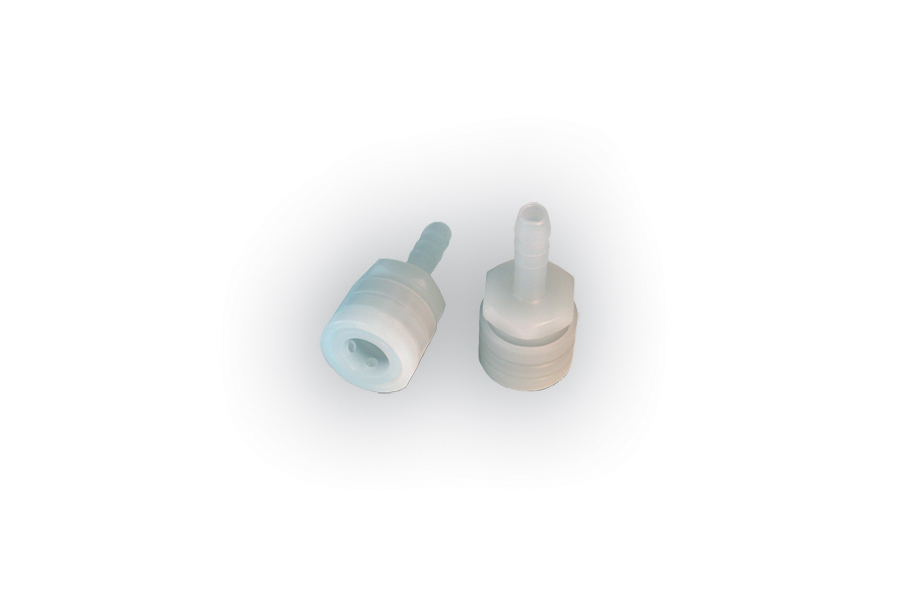

47875-000
Hansen – Dialysate Connector.
This Hansen connector is located on the end of the dialysate line.

P/N Description Package
47875-000 Hansen - Dialysate Connector  Each

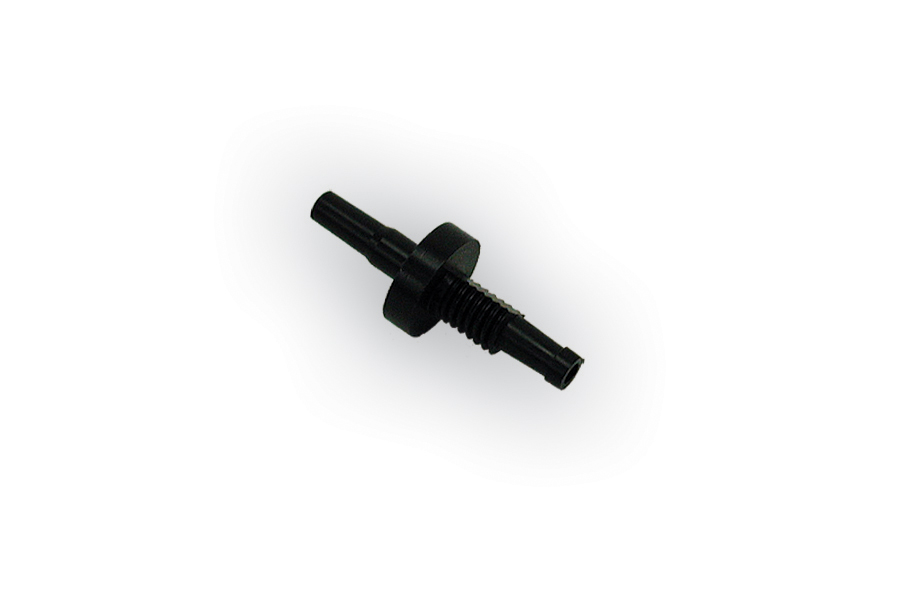

75059-000
Interlock Fitting.
Sanitize interlock fitting located on the front of the Renatron System.

P/N Description Package
75059-000 Interlock Fitting  Each

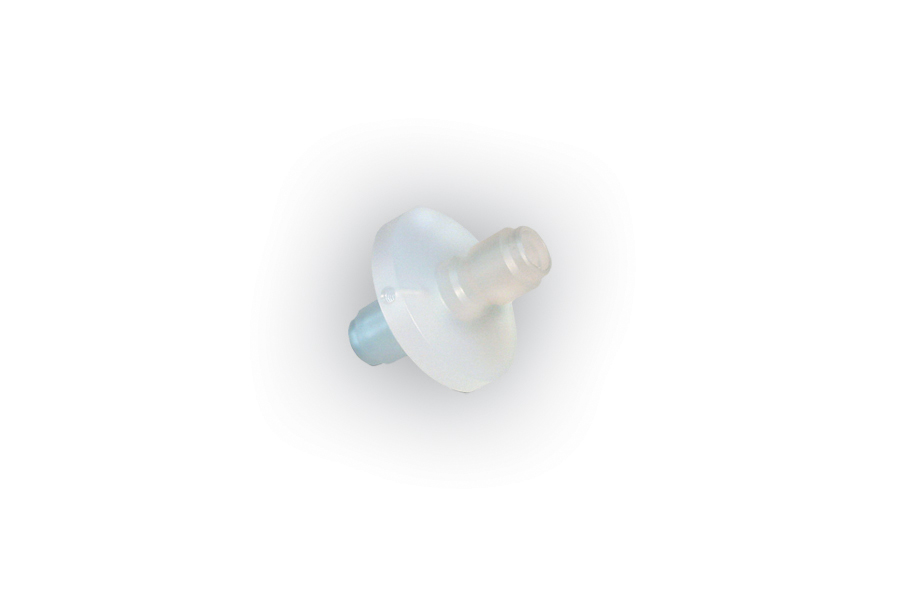

75060-000
Male/Male Interlock Adapter.
This component is used to join the Hansen connnectors during the sanitize cycle.

P/N Description Package
75060-000 Male/Male Interlock Adapter  Each



75062-000

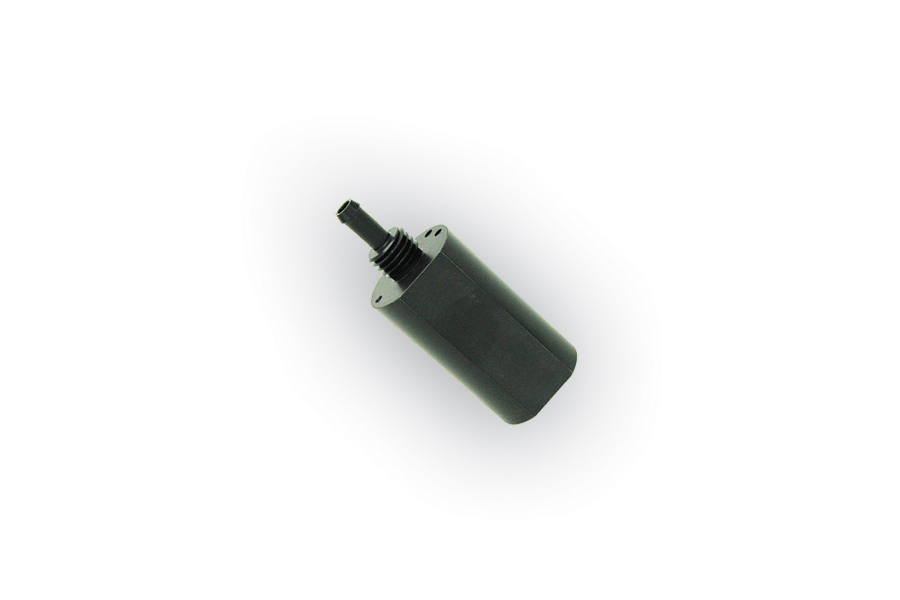

Dialyzer Holder. The Dialyzer Holder is located on the front wall of the Renatron System.

P/N Description Package
75062-000 Dialyzer Holder  Each

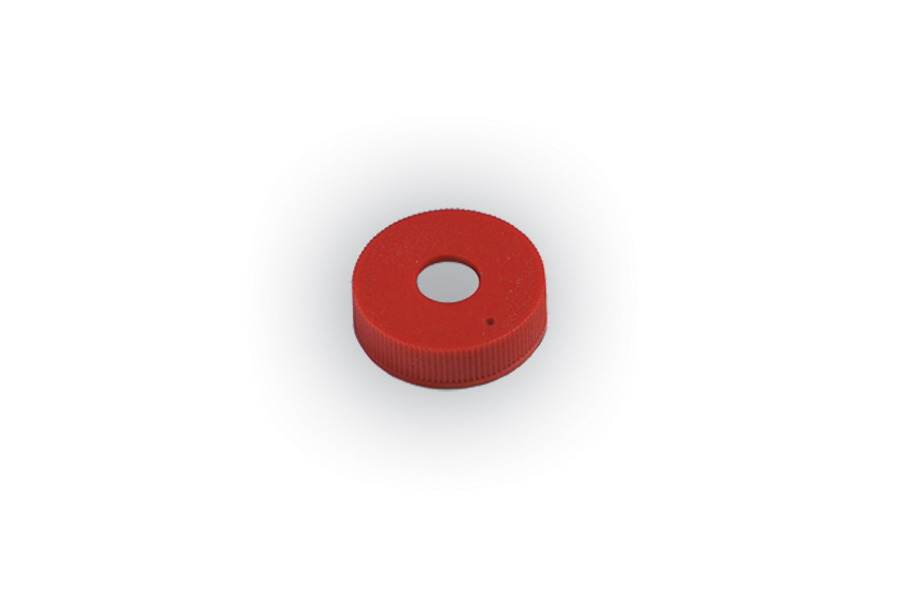

75072-002
Modified Cap. Vented cap for teh uptake tube assembly.

P/N Description Package
75072-002 Modified Cap  Each

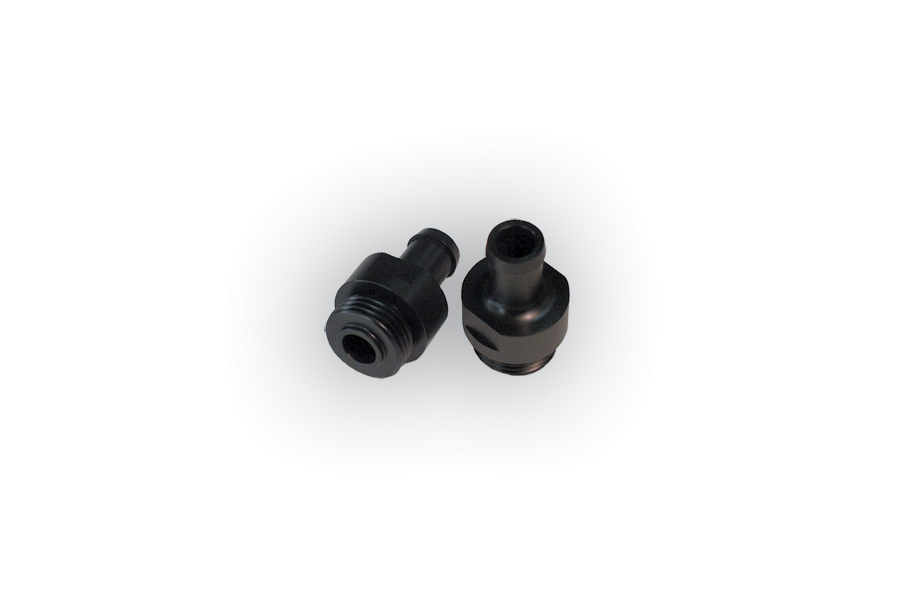

75100-000
Jet Pump Retainer (Drain Fitting). Connection point for the drain hose.

P/N Description Package
75100-000 Jet Pump Retainer (Drain Fitting)  Each

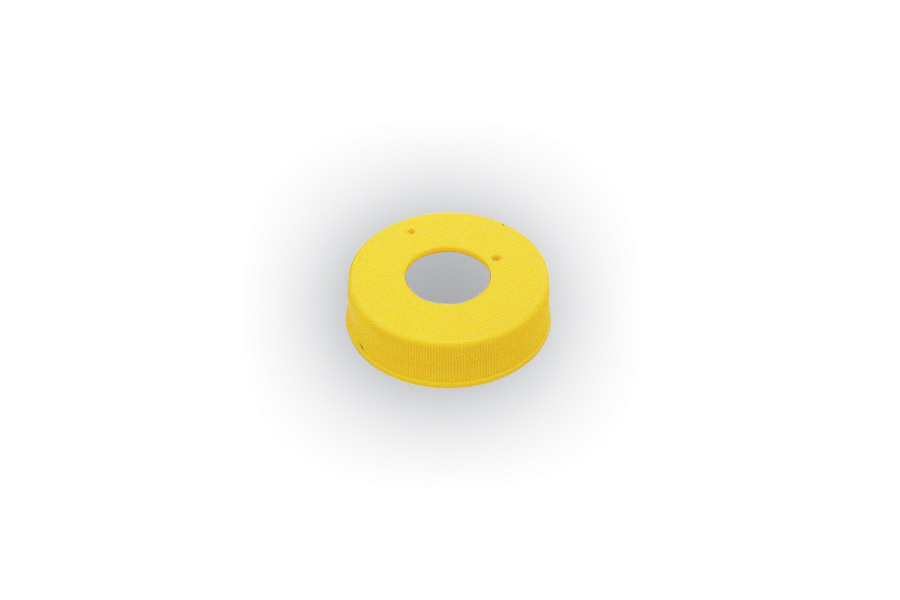

75227-354
Modified Cap Renalin 100. Vented Cap located on the Renalin 100 uptake tube assembly.

P/N Description Package
75227-354 Modified Cap Renalin 100  Each



78147-003

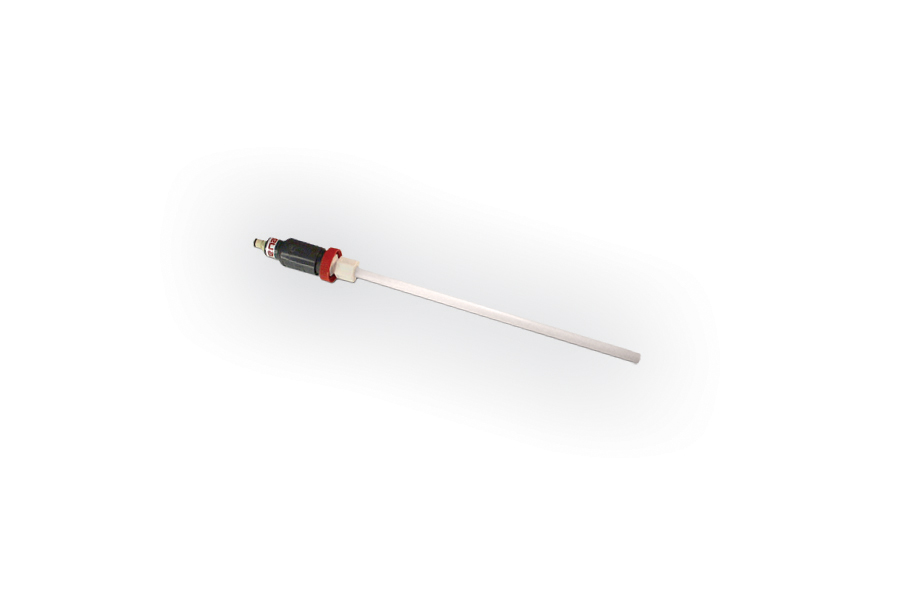

Renalin Uptake Tube Assembly. Attaches to the Renalin jug. Not for use with Renalin 100.

P/N Description Package
78147-003 Renalin Uptake Tube Assembly  Each

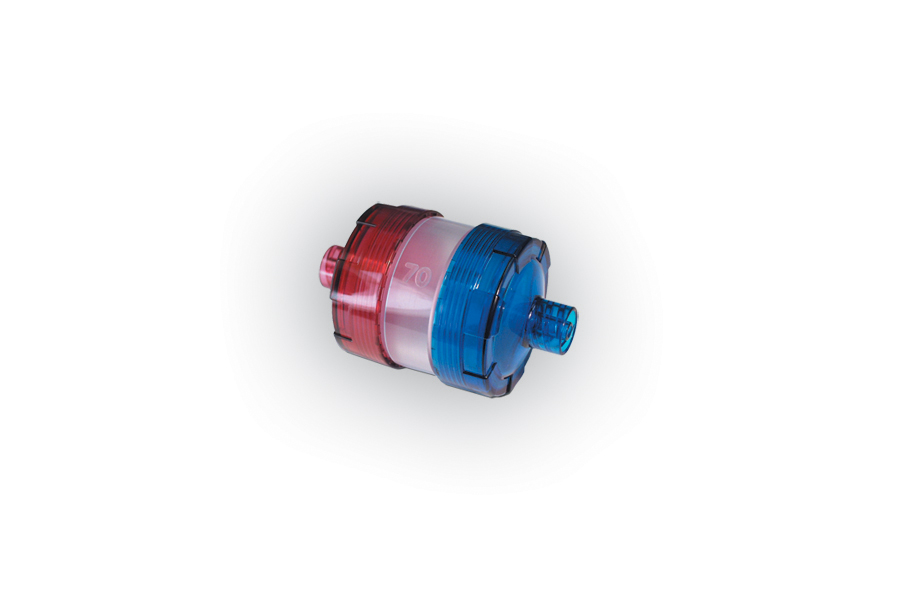

78159-002
Calibrated Volume Cell (Cal Cell). The cal-cell is used to verify the valibration of the Renatron. Each cal-cell has a preset volume of 70 mls.

P/N Description Package
78159-002 Calibrated Volume Cell (Cal-Cell)  Each



78207-000

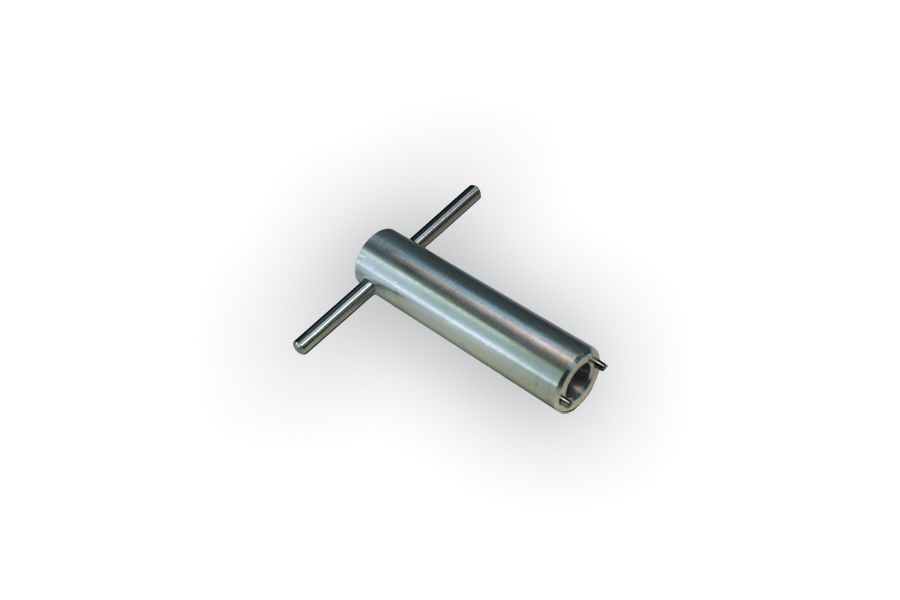

Large Valve Removal Tool. Used to remove large valve guides from the Renatron system.

P/N Description Package
78207-000 Large Valve Removal Tool  Each



78207-020
Valve Service Kit. 4 Small plungers and springs, 4 small valves guides, 9 large plunger and springs, 9 large valve guides, 1-V15 diaphragm, 9 large valve o-rings, 4 small valve o-rings

P/N Description Package
78207-020 Valve Service Kit  Each

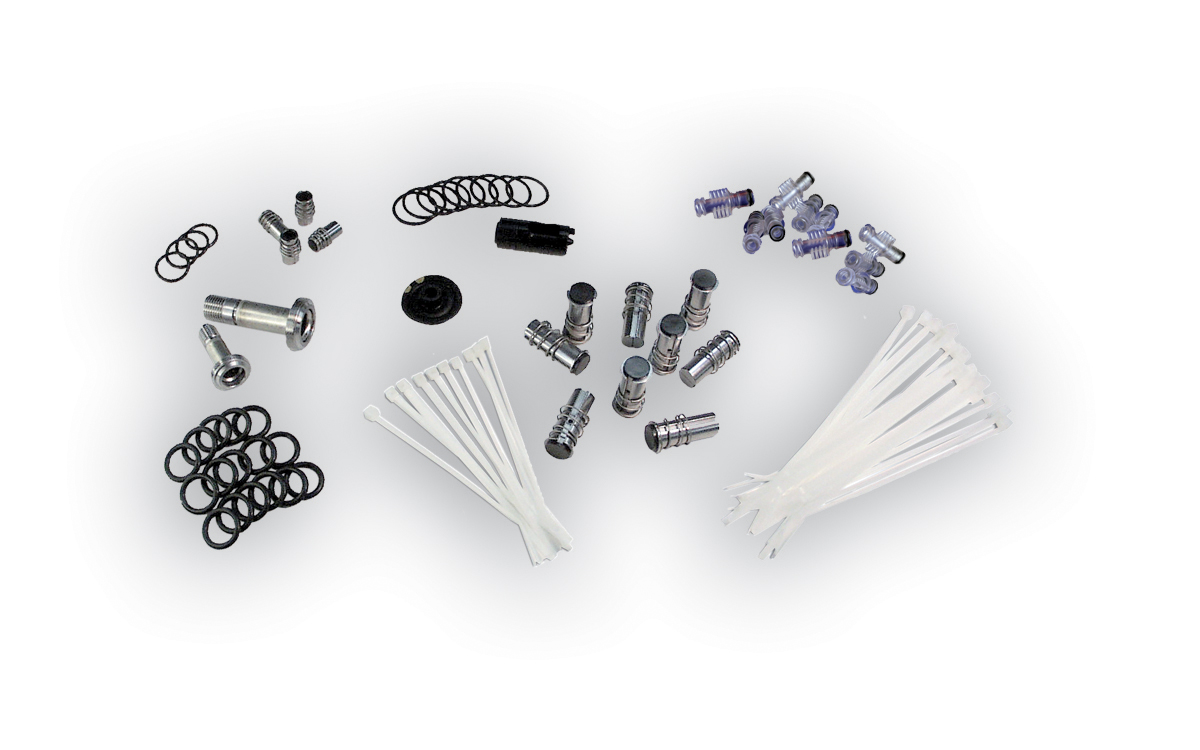

78207-040
PM Kit (for Renalin 100 Stations). 1 tubing kit, 1 small valve guide, 1 large valve guide, 10 large tie wraps, 20 small tie wraps, 1-V15 diaphragm, 9 large valve o-rings, 4 small valve o-rings, 16 hansen o-rings, 2 manifold plugs, 10 reprocessing connectors, 1 Renalin 100 check valve, 9 large plungers and spring, 4 small plungers and spring, 1 jet pump nozzle and spacer

P/N Description Package
78207-040 PM Kit (for Renalin 100 Stations)  Each



78327-020

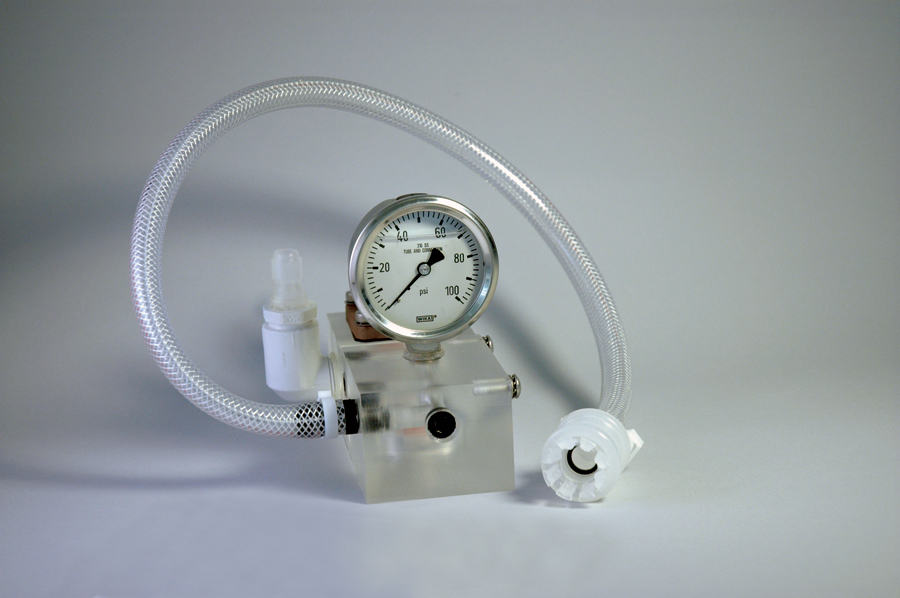

Pressure Regulator Assembly – Single. Used to reduce water pressure to your RENATRON system. Pressure gauge included. Feeds one RENATRON system.

P/N Description Package
78327-020 Pressure Regulator Assembly - Single  Each

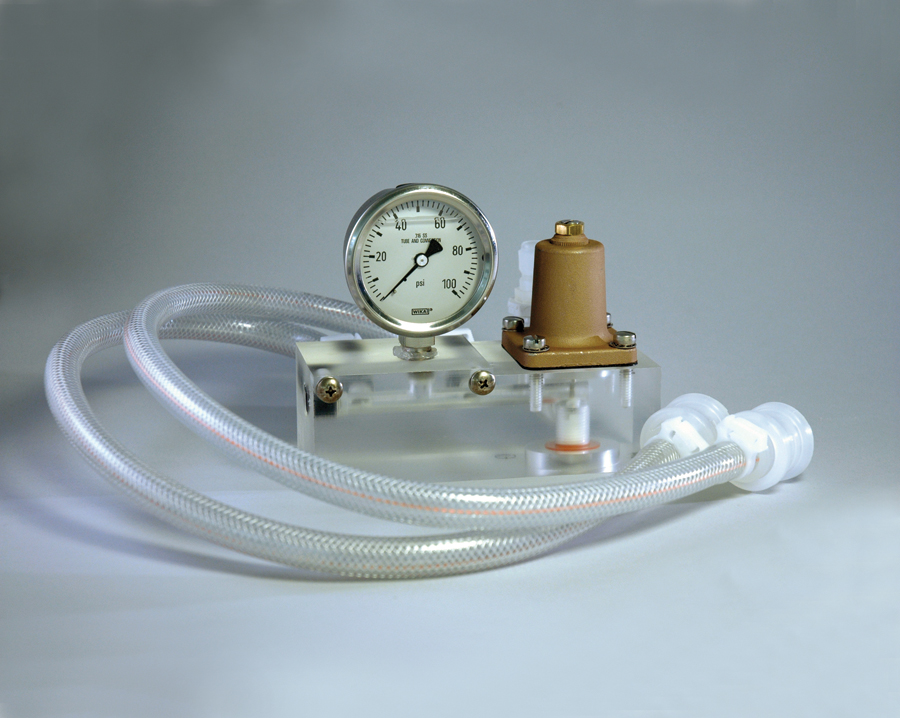

78327-021
Pressure Regulator Assembly – Double. Used to reduce water pressure to your RENATRON system. Pressure gauge included. Feeds two RENATRON systems.

P/N Description Package
78327-021 Pressure Regulator Assembly - Double  Each



78327-030

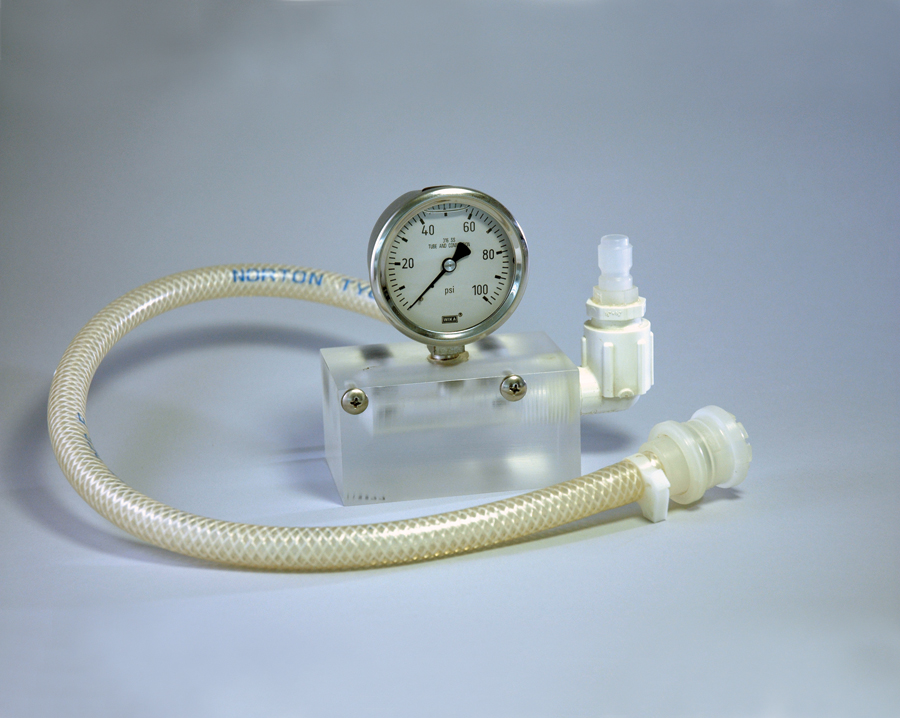

Inlet Pressure Gauge Assembly – Single. Take your daily water pressure readings with the Inlet Pressure Gauge Assembly. Feeds one RENATRON system (does not regulate water pressure).

P/N Description Package
78327-030 Inlet Pressure Gauge Assembly - Single  Each

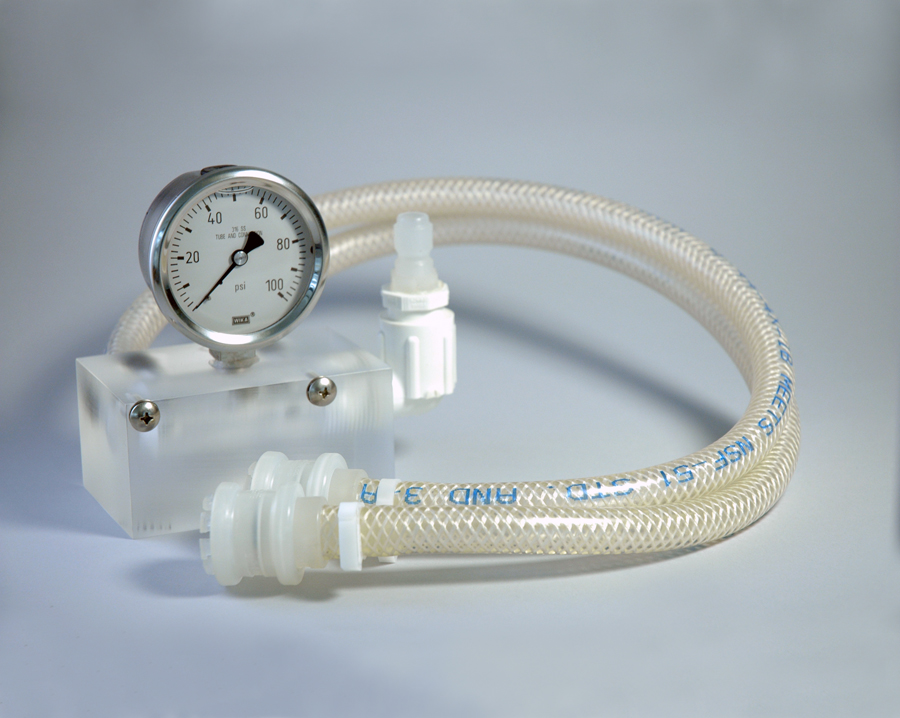

78327-031
Inlet Pressure Gauge Assembly - Double. Take your daily water pressure readings with the Inlet Pressure Gauge Assembly. Feeds two RENATRON systems (does not regulate water pressure).

P/N Description Package
78327-031 Inlet Pressure Gauge Assembly - Double  Each



78342-001
Double Drip Tray
Constructed of RENALIN Cold Sterilant resistant material. The dual drip tray will accommodate two RENATRON Systems. 33.25" x 28" x 3.5"

P/N Description Package
78342-001 Double Drip Tray  Each

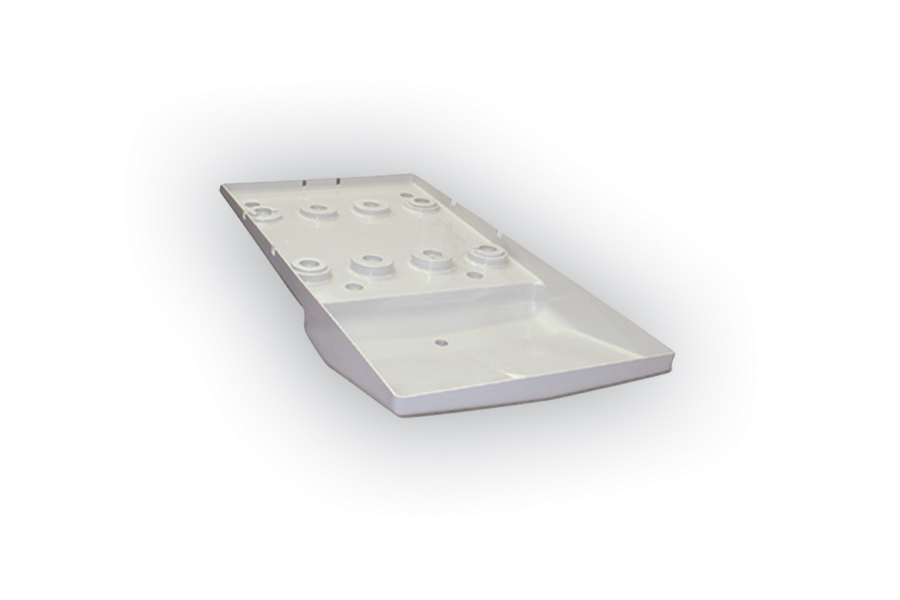

78342-002
Single Drip Tray.
Constructed of Renalin Cold Sterilant resistant material. The single drip tray will accommodate one Renatron System. 15" x 28" x 3.5"

P/N Description Package
78342-002 Single Drip Tray  Each

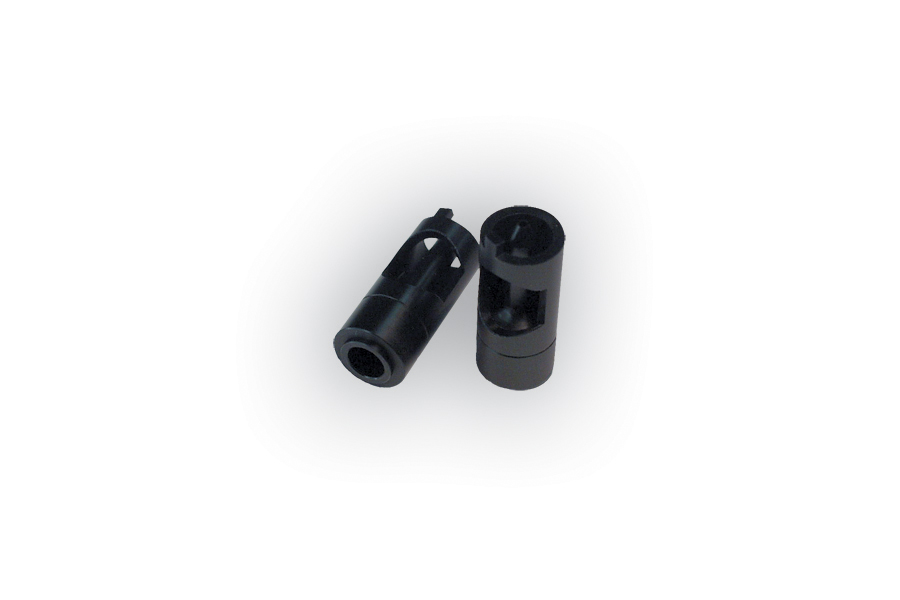

78397-842
Jet Pump Nozzle/Spacer Assembly. The jep pump nozzle/spacer is located in the manifold behind the jet pump diffuser.

P/N Description Package
78397-842 Jet Pump Nozzle/Spacer Assembly  Each

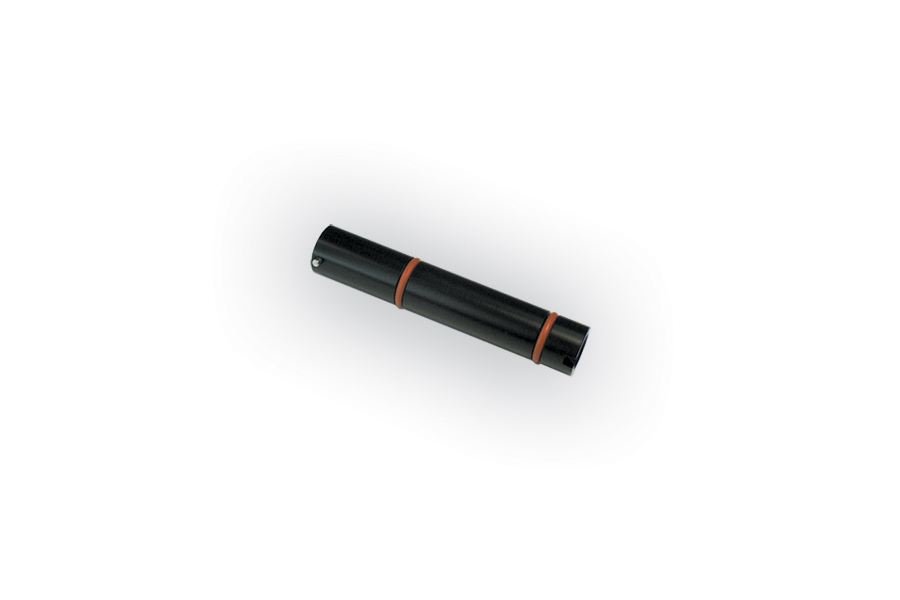

78397-843
Jet Pump Diffuser Assembly. Located in the manifold behind the jet pump drain fitting.

P/N Description Package
78397-843 Jet Pump Diffuser Assembly  Each



78397-847

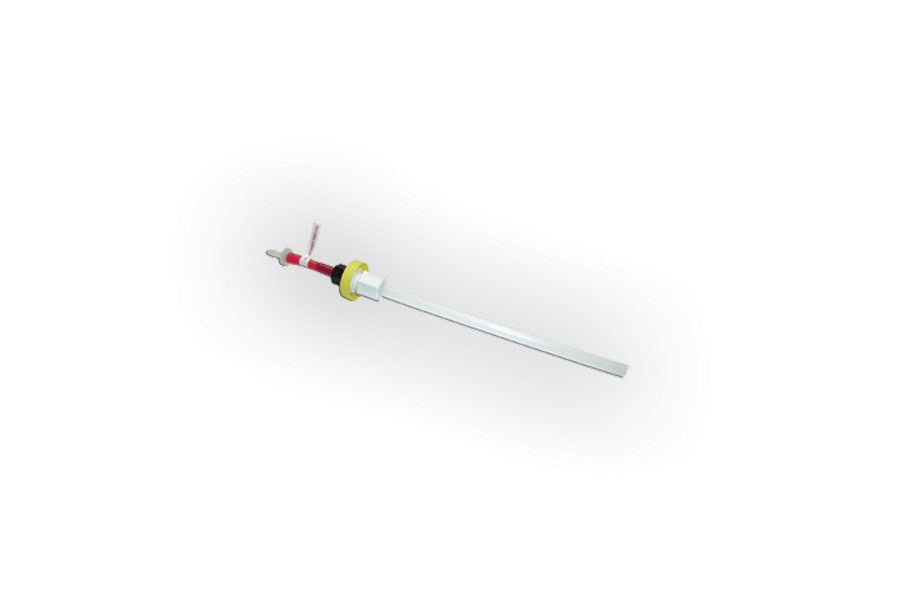

Renalin 100 Uptake Tube Assembly. Attaches to the RENALIN 100 jug.

P/N Description Package
78397-847 Renalin 100 Uptake Tube Assembly  Each

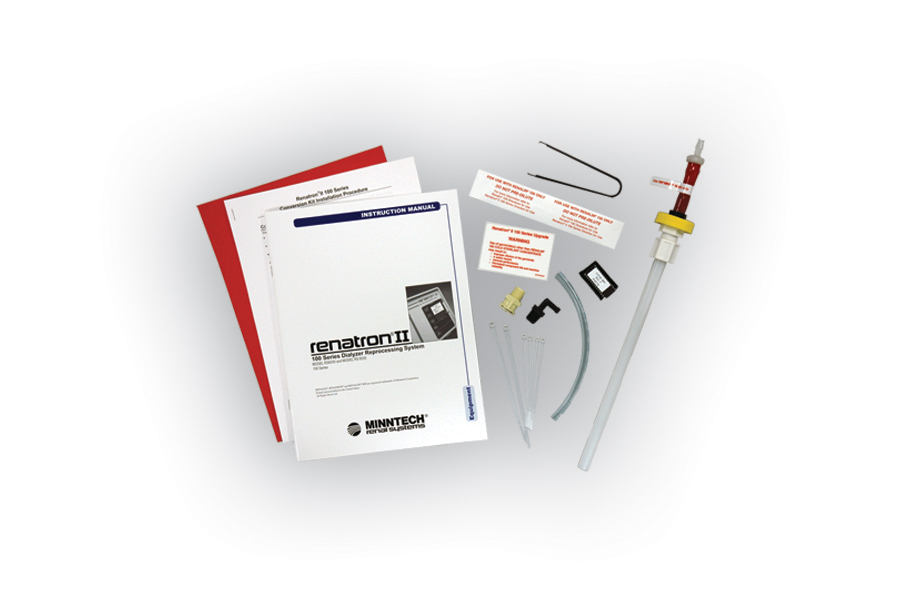

78397-848
Renatron II 100 Series Conversion Kit.
Kit used to convert standard Renatron II machines to Renatron II 100 Series machines.

P/N Description Package
78397-848 Renatron II 100 Series Conversion Kit  Each

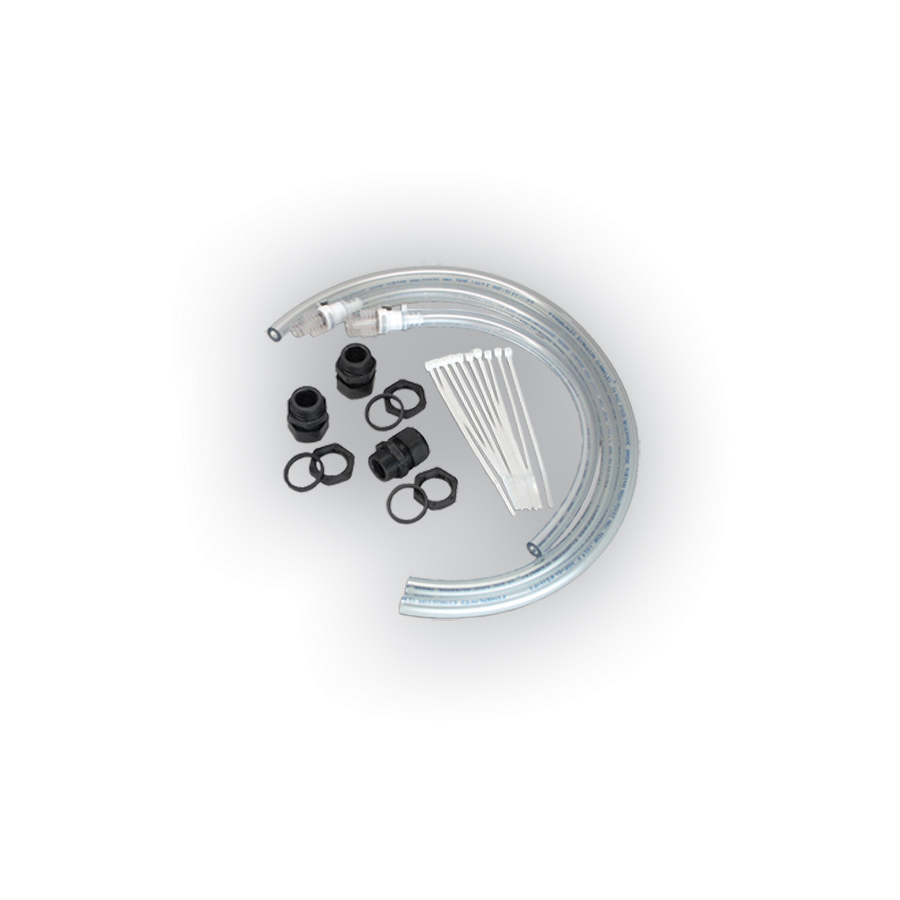

78397-881
Tubing Kit. 3 Bushings and spacers, 1 - 24 inch piece of PVC tubing (dialysate line), 1 arterial blood tubing and connector, 1 venous blood tubing and connector, 10 large tie wraps, 2 swivel body.

P/N Description Package
78397-881 Tubing Kit  Each



78398-133
Label Printer. Resolution:  203 dpi (8 dots/mm). Width: 4.09" (104mm). Speed: 4" (102mm) per second. Construction:  High-impact, double walled plastic enclosure.

P/N Description Package
78398-133 Label Printer  Each

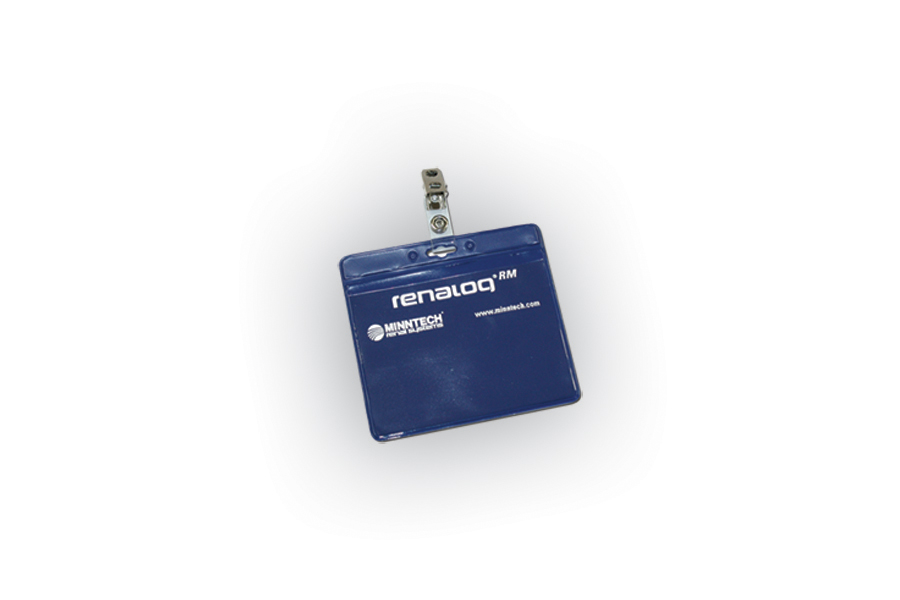

78398-134
Badge Holder. Designed to hold the technician bar code information that is a part of the RENALOG RM program.

P/N Description Package
78398-134 Badge Holder  Each

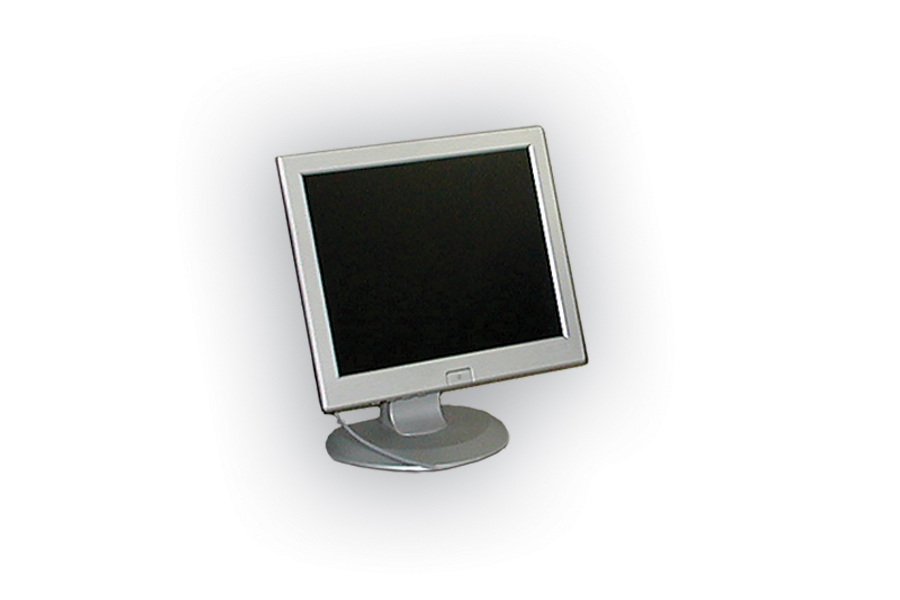

78398-135
Flat Screen Monitor. Analog, TFT active matrix panel with a screen resolution of 1,024 x 768 at 60 to 75 Hz. 16 million colors on an anti-glare, anti-reflective, adjustive display.

P/N Description Package
78398-135 Flat Screen Monitor  Each

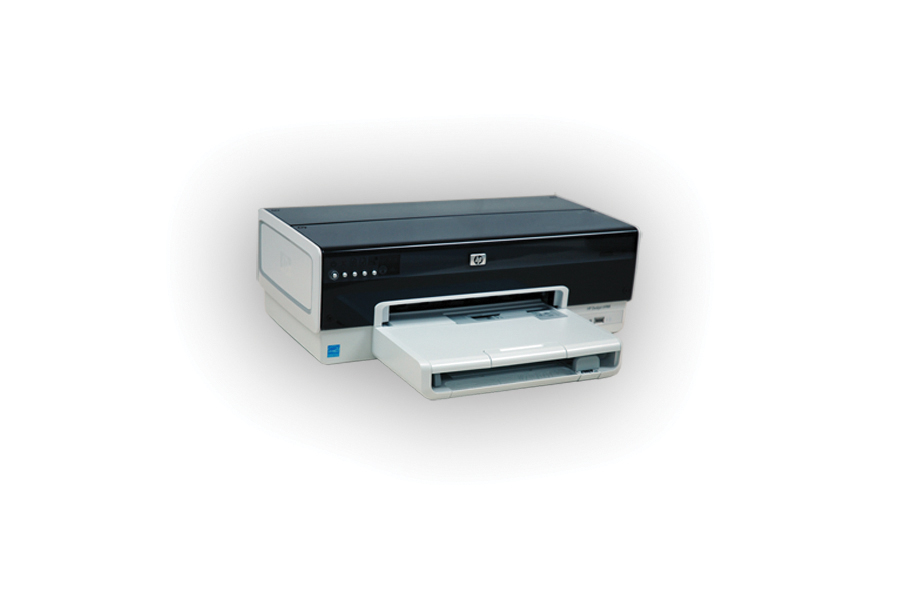

78398-141
Inkjet Report Printer. Minimum of 2880 x 720 dpi resolution. Individual ink cartridges. USB connectivity with network options. Model based on availability.

P/N Description Package
78398-141 Inkjet (Report) Printer  Each

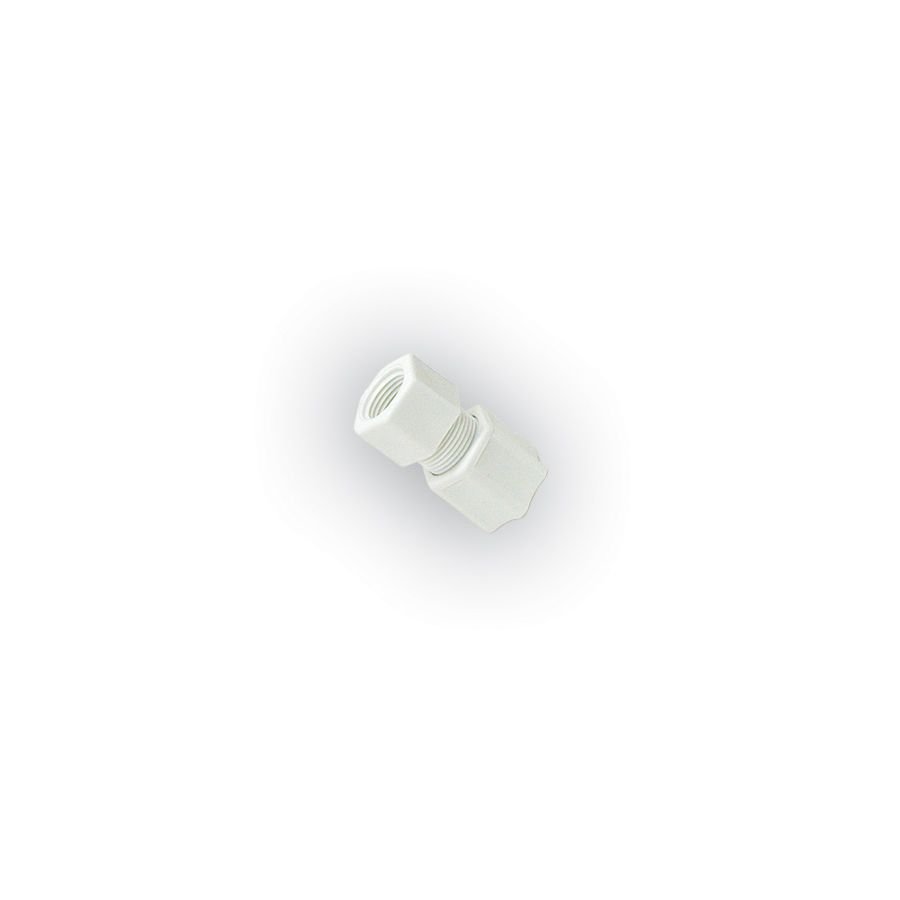

78398-687
Female Tube Fitting. This fitting is located on the RENALIN 100 uptake tube assembly.

P/N Description Package
78398-687 Female Tube Fitting  Each

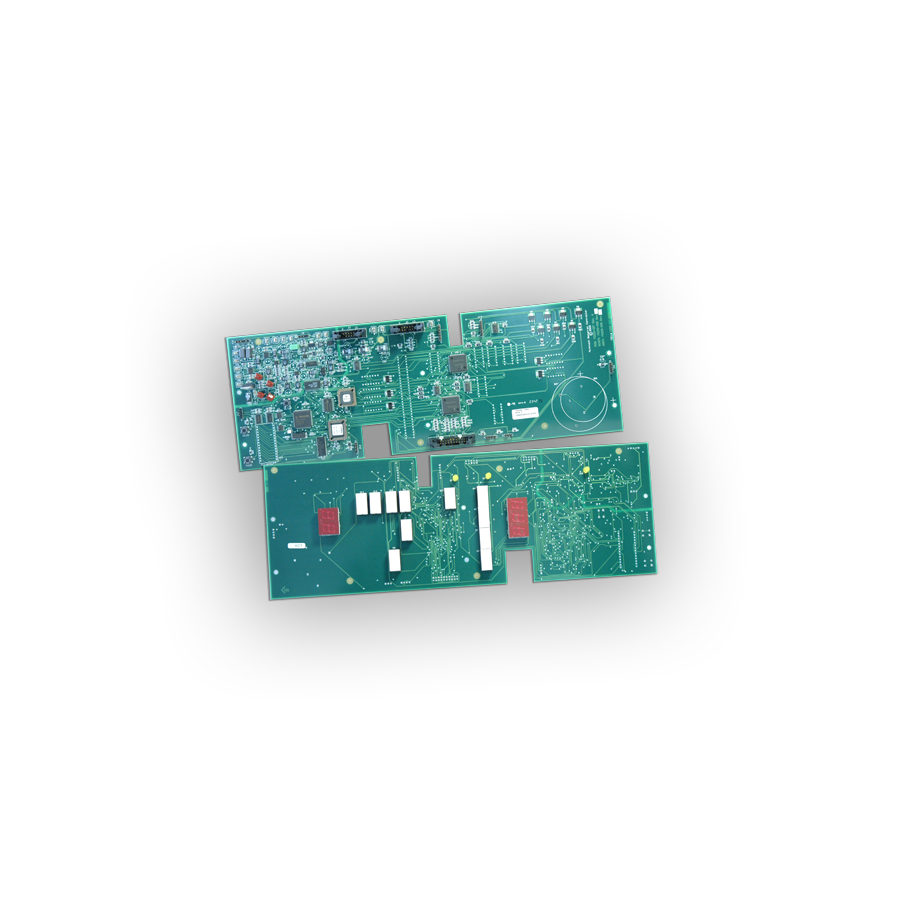

78398-719
New Style Control Board for Renatron II 100 Series. Control board with S1, S2 and S3. RENATRON serial number required when ordering.

P/N Description Package
78398-719 New Style Control Board for the Renatron II 1oo Series  Each

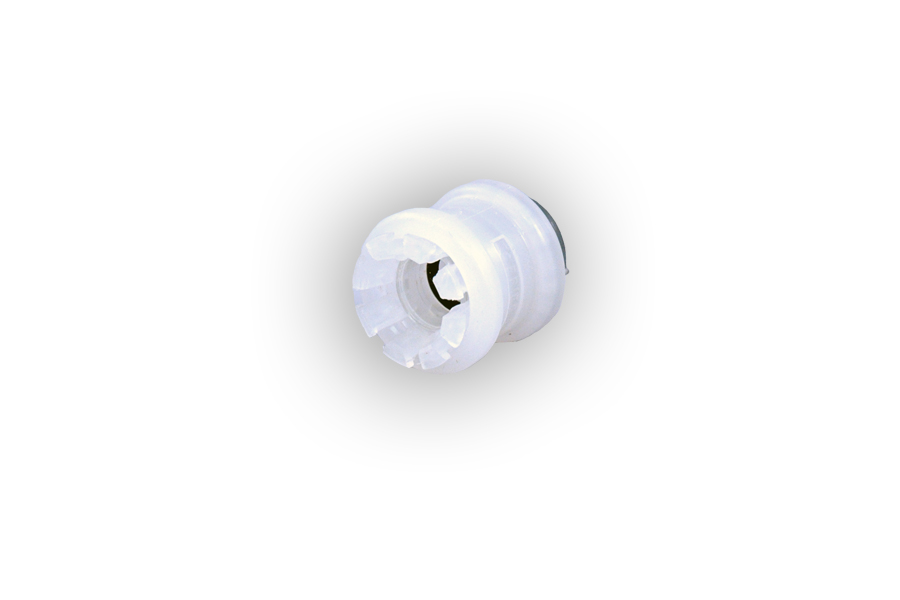

78398-723
Plugged Hansen Assembly. Used to block one of the dialysate ports on your dialyzer while performing a Reverse UF.

P/N Description Package
78398-723 Plugged Hansen Assembly  Each

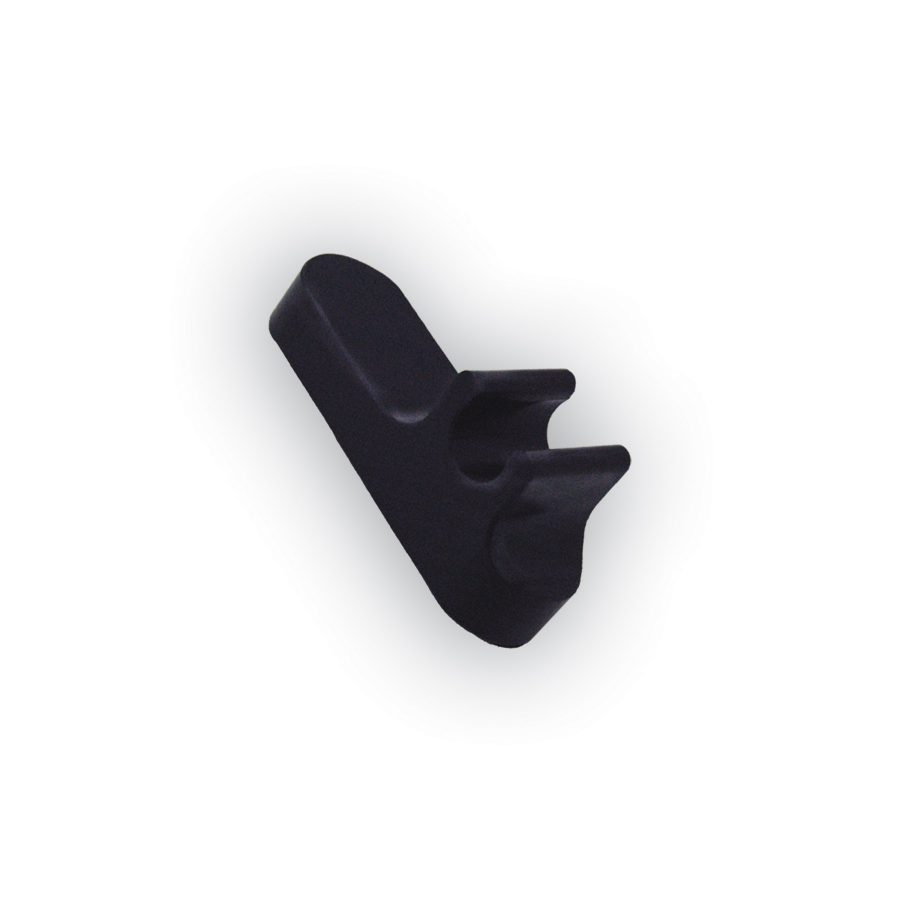

78400-074
Venous outlet Clamp Kit. This kit allows the user to add a venous tubing clamp to the front of the RENATRON in place of the sanitize ports.

P/N Description Package
78400-074 Venous Line Holder Kit  Each



Documents
This is empty views
This is empty views
In-Service Material
This is empty views
